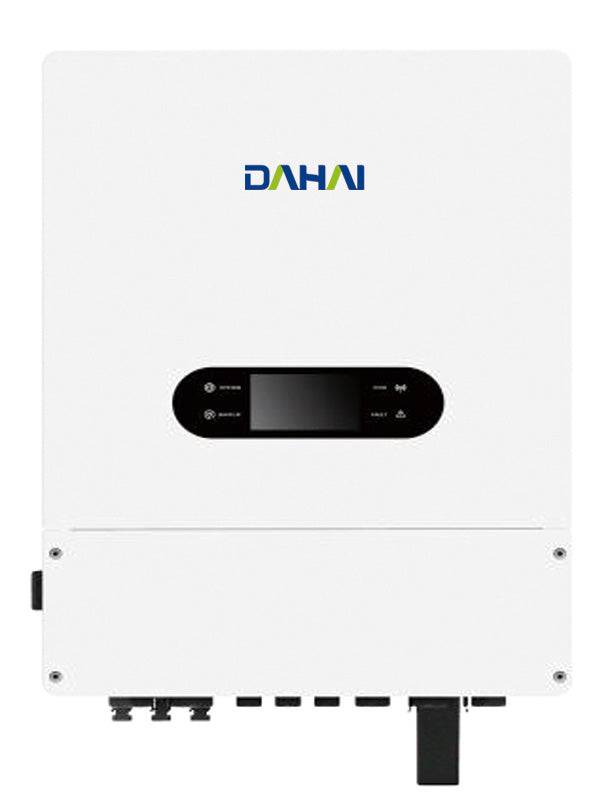

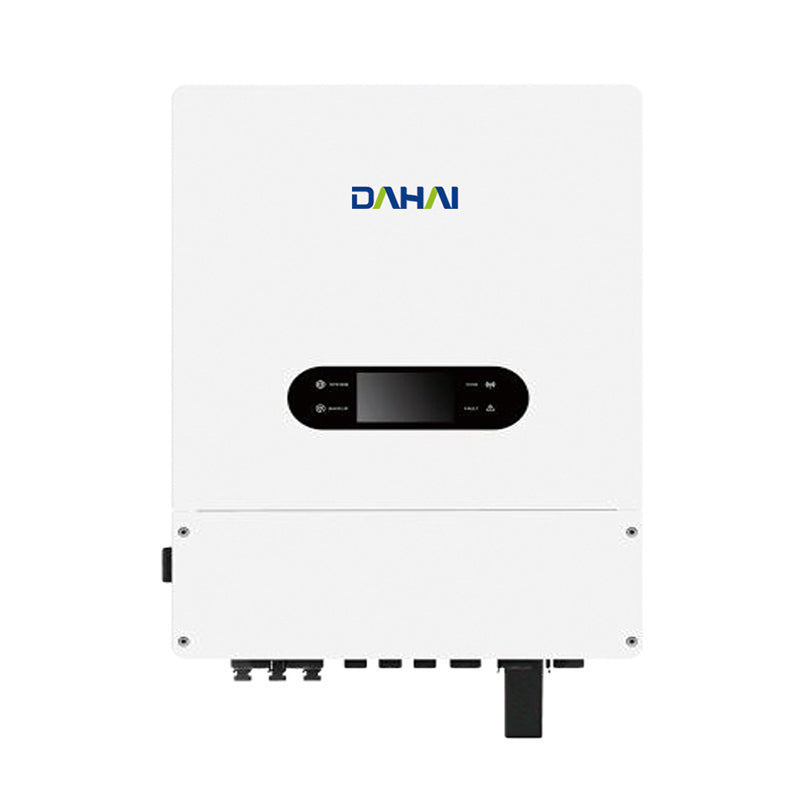

AGAIC DAHAI HyL Series Hybrid Inverter 8-15kW for Off-Grid and Hybrid Systems
DAHAI HyL Series Three-Phase Hybrid Inverter
The HyL series is a high-performance three-phase hybrid inverter designed for residential and commercial energy storage systems.
Key Features:
- Power Range: 8KW - 15KW
- Three-phase design
- Up to 36A maximum input current
- Off-grid peak power 200% overload within 15 seconds
- 200% photovoltaic over-proportion ratio
- Maximum Efficiency: 98%
- European Efficiency: 97.5%
- Dual MPPT trackers
- Supports lithium or lead-acid batteries
- RS485, WiFi, GPRS communication options
Technical Specifications
| Parameter | HyL-8K | HyL-10K | HyL-12K | HyL-15K | ||
|---|---|---|---|---|---|---|
| Rated Output Power | 8000W | 10000W | 12000W | 15000W | ||
| Rated Output Voltage | 380 / 400 / 415V AC, 3-Phase | |||||
| Rated Output Frequency | 50 / 60Hz | |||||
| Max PV Input Power | 12000W | 15000W | 18000W | 22500W | ||
| Max Input Voltage (PV) | 1000V DC | |||||
| MPPT Voltage Range | 200 – 850V DC | |||||
| No. of MPPT Trackers | 2 | |||||
| Max Input Current per MPPT | 18A / 36A | |||||
| Battery Type | Lithium-ion / Lead-acid | |||||
| Battery Voltage Range | 40 – 60V | |||||
| Max Charge / Discharge Current | 80A | 100A | 120A | 150A | ||
| Off-Grid Peak Power | 200% Overload (15s) | |||||
| Max Efficiency | 98.0% | |||||
| European Efficiency | 97.5% | |||||
| Protection Rating | IP65 | |||||
| Cooling | Intelligent Forced Air Cooling | |||||
| Display | LED / LCD (optional) | |||||
| Communication | RS485, WiFi, GPRS | |||||
| Dimensions (W x H x D) | 482 x 503 x 198 mm | |||||
| Weight | 23kg | 24kg | 24kg | 25kg | ||
| Operating Temperature | -25 ~ +60 °C | |||||
| Warranty | 5 Years (standard) | |||||
Frequently Asked Questions
Q: Can the AGAIC DAHAI HyL Series Hybrid Inverter 8-15K work with or without a battery?
A: Yes. In hybrid mode it operates with a battery for backup and self-consumption, and can also pass solar power to your loads without a battery. In off-grid mode it runs independently from the grid.
Q: Will it keep my home powered during a blackout?
A: Yes. With a battery connected, the AGAIC DAHAI HyL Series Hybrid Inverter 8-15K provides seamless backup power during grid outages, automatically switching to battery supply.
Q: What battery voltage does it support?
A: The AGAIC DAHAI HyL Series Hybrid Inverter 8-15K is designed for the battery voltage class listed in its specifications (48V or high-voltage). Pair it with AGAIC LiFePO4 batteries of the matching voltage for best performance.
Q: How many solar panels can I connect?
A: It supports one or more MPPT strings within its PV input range. See the Technical Specifications table above for max PV power and voltage, then size your AGAIC panel array accordingly.
Q: Can I monitor it remotely?
A: Yes. AGAIC hybrid inverters support Wi-Fi and app monitoring for real-time status, yield, and battery state.
Q: What is the warranty?
A: AGAIC POWER provides a 5-year warranty on hybrid and off-grid inverters, extendable in most regions.
