What is the usable capacity of the HZF-51.2-314-SA battery?

The module provides 16.07kWh total energy storage with 51.2V nominal voltage and 314Ah capacity, using LiFePO4 cells rated for 5000+ deep discharge cycles.

How does the battery communicate with inverters?

It supports CAN bus and RS485 communication protocols, compatible with most leading hybrid inverter brands for seamless BMS-to-inverter data exchange.

Can multiple battery modules be connected together?

Yes, multiple HZF-51.2-314-SA modules can be connected in parallel for larger storage capacity, supporting scalable home and commercial energy storage systems.

Free Shipping on Orders Over $500 · 10-Year Warranty · Code SOLAR10

person

SALE

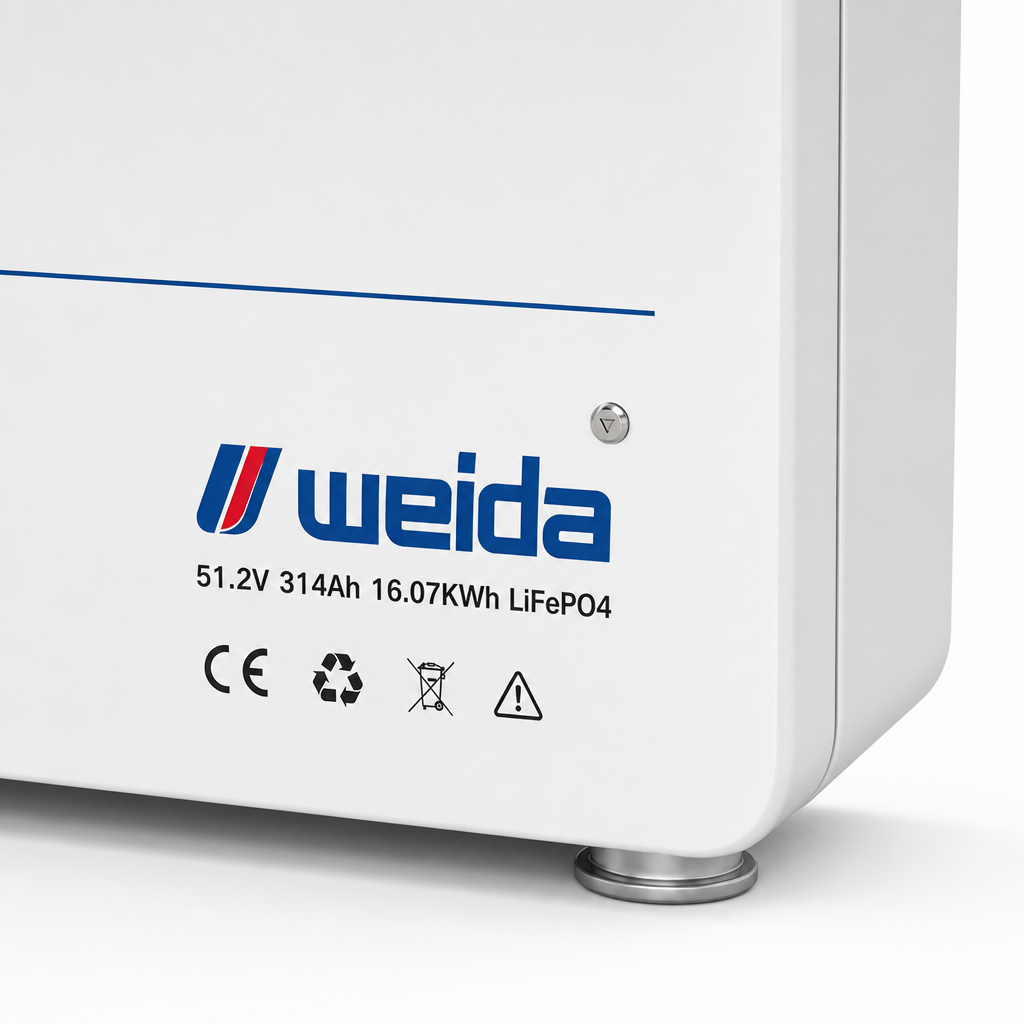

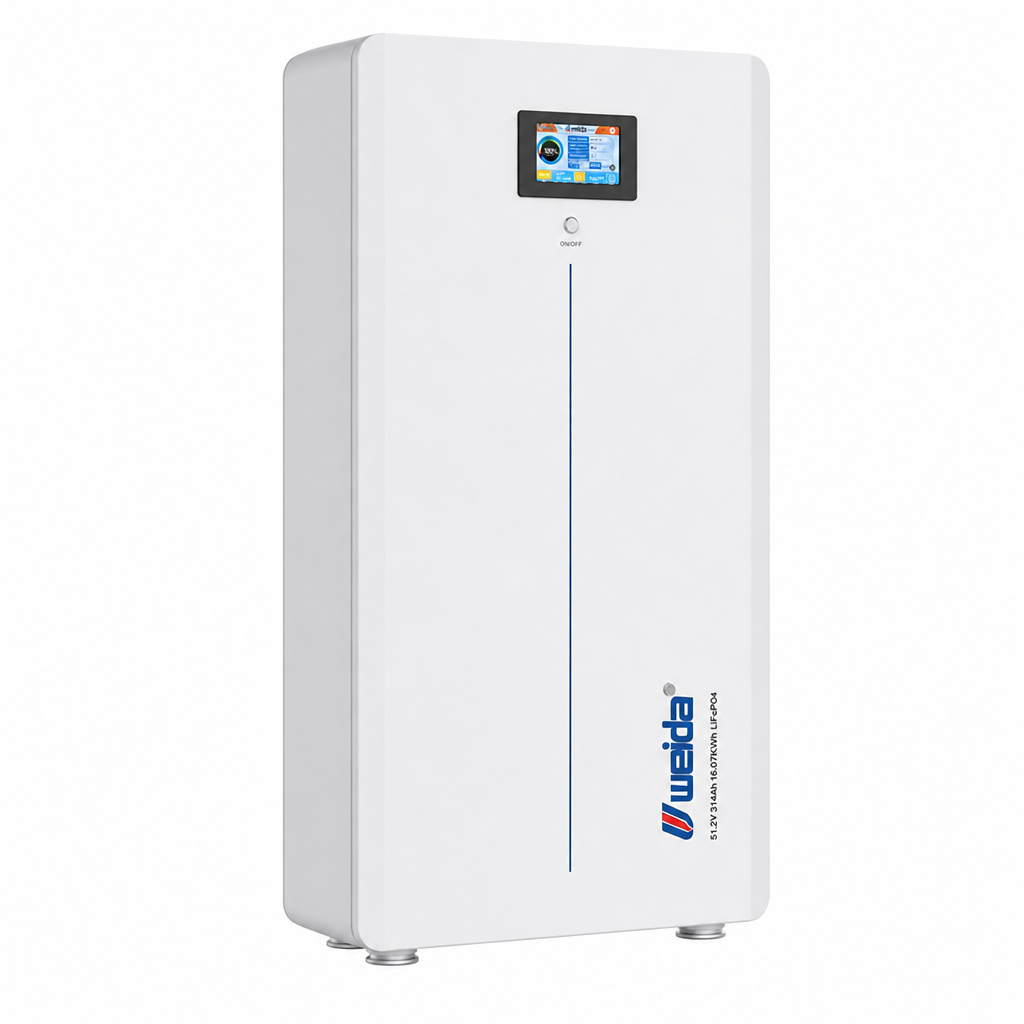

AGAIC 16.07kWh Floor-Standing LiFePO4 Battery Module 51.2V 314Ah for Home Backup

AGAIC 16.07kWh Floor-Standing LiFePO4 Battery Module 51.2V 314Ah for Home Backup - 1

AGAIC 16.07kWh Floor-Standing LiFePO4 Battery Module 51.2V 314Ah for Home Backup

SKU: AG-HZF-51.2-314

$2,166.00 $5,032.00 SAVE 57%

sell Save 57% — Limited Time Offer

verified 10-Year Warranty

eco Carbon Neutral

support_agent 24/7 Support

Frequently Asked Questions

Q: What is the AGAIC 16.07kWh Floor-Standing LiFePO4 Battery Module compatible with?

A: The AGAIC 16.07kWh Floor-Standing LiFePO4 Battery Module works with AGAIC hybrid and off-grid inverters that match its voltage class (high-voltage or low-voltage as specified). It is ideal for whole-home backup and daily solar self-consumption.

Q: Can I expand the capacity later?

A: Yes. AGAIC battery systems are modular - you can add more modules or stacks to increase total capacity as your energy needs grow, within the inverter supported limit.

Q: How long will the battery last?

A: Built with LiFePO4 cells, the AGAIC 16.07kWh Floor-Standing LiFePO4 Battery Module delivers 6000+ charge cycles (typically 10+ years of daily use) while retaining most of its capacity - far longer than lead-acid alternatives.

Q: Is it safe to install in my home?

A: Yes. LiFePO4 is one of the safest battery chemistries, and each module includes a Battery Management System (BMS) for over-charge, over-discharge, and thermal protection. Professional installation is still recommended.

Q: Do I need a professional to install it?

A: For whole-home systems we strongly recommend certified installer setup to ensure code compliance and safe integration with your inverter and grid connection.

Q: What is the warranty?

A: AGAIC POWER backs the AGAIC 16.07kWh Floor-Standing LiFePO4 Battery Module with a 5-10 year limited warranty depending on model. See the product page for exact terms.

Parameter	Specification
Model	HZF-51.2-314-SA
Battery Chemistry	LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage	51.2V
Rated Capacity	314Ah
Rated Energy	16.076kWh
Charge Cut-off Voltage	58.4V
Discharge Cut-off Voltage	42V
Max Continuous Charge Current	157A
Max Continuous Discharge Current	200A
Cycle Life	≥5000 Cycles @ 25°C, 80% DOD, 0.5C
Communication	CAN, RS485
Protection Rating	IP20
Display	LED (SOC / Alarm), Optional 4.3" or 7" Touch Screen
Installation	Floor-standing (foot pad mounting)
Protection Functions	Overcharge, Over-discharge, Overcurrent, Short Circuit, Over-temperature
Operating Temperature (Charge)	0°C–50°C
Operating Temperature (Discharge)	-20°C–60°C
Storage Temperature	5°C–45°C
Dimensions (H×W×D)	950×500×265mm
Weight	125.5kg
Warranty	3 Years

Frequently Asked Questions

What battery chemistry and cycle life does the 16.07kWh Floor-Standing LiFePO4 Battery Module use?

It uses LiFePO4 (LFP) cells rated for 5000+ charge cycles at 80% depth of discharge, delivering a 10-year service life with stable performance.

Is this battery compatible with my solar inverter?

Yes. It communicates via CAN/RS485 and works with most 48V low-voltage hybrid inverters, including the AGAIC DAHAI HyL and SPF series.

Is it safe to install in my home?

Yes. A built-in BMS protects against overcharge, over-discharge, short circuit and over-temperature, and the enclosure is rated for residential installation.

How is the battery installed?

Wall-mounted or floor-standing depending on the model. Connect the battery terminals to the inverter battery port following the manual; professional installation is recommended for whole-home systems.

What warranty is included?

A 10-year limited warranty is included. The battery is certified to UN38.3, CE and IEC standards.
