AGAIC 5kW Hybrid Solar System Kit with SPF 5000 ES Inverter and ELESHELL-5K 5.12kWh Battery for Off-Grid Home
SKU: AGAIC-KIT-5KW-5000ES-ELESHELL5K
$2,398.00
$2,664.00
SAVE 10%
confirmation_numberUse Code: 3SXAKGVSXE07 — Save 10%
verified
10-Year Warranty
eco
Carbon Neutral
support_agent
24/7 Support

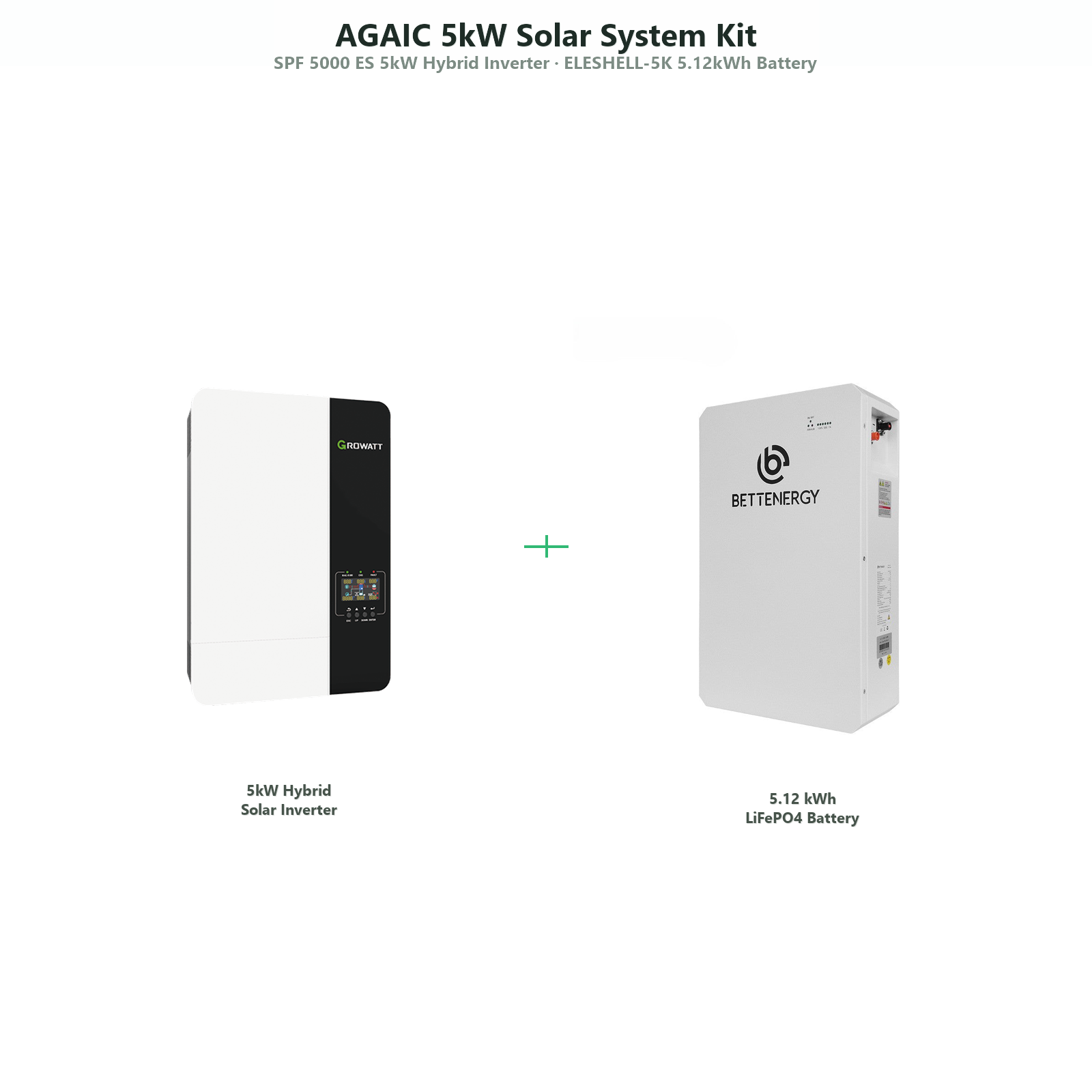

AGAIC 5kW Hybrid Solar System Kit — SPF 5000 ES Inverter + ELESHELL-5K 5.12kWh Battery
The AGAIC 5kW Hybrid Solar System Kit bundles our best-selling SPF 5000 ES 5kW Hybrid Solar Inverter with the ELESHELL-5K 5.12kWh wall-mounted LiFePO4 battery into one ready-to-install home energy storage solution. Together they form a complete hybrid power system: capture solar energy through the MPPT charge controller, store it in the safe LFP battery, and deliver clean 110V/230V AC power to your home — automatically switching to backup during grid outages. Buying the kit saves you 10% versus purchasing the components separately.
What's Included
| Component | Model | Key Spec |
|---|---|---|

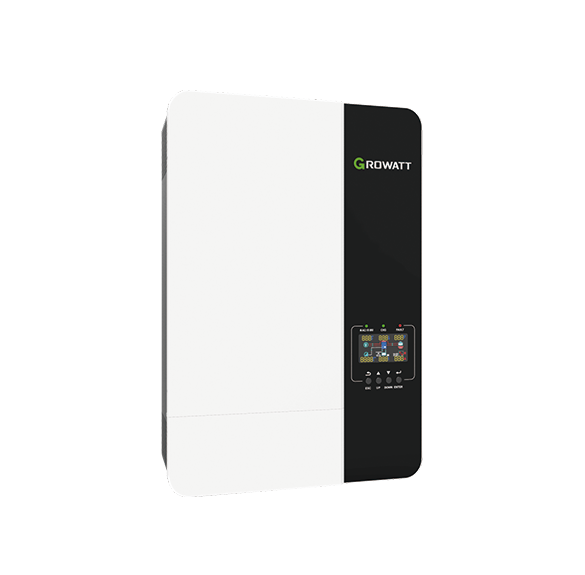

| Hybrid Solar Inverter | AGAIC SPF 5000 ES | 5kW (5000W) rated power, 48V MPPT, hybrid on-grid / off-grid, pure sine wave output |

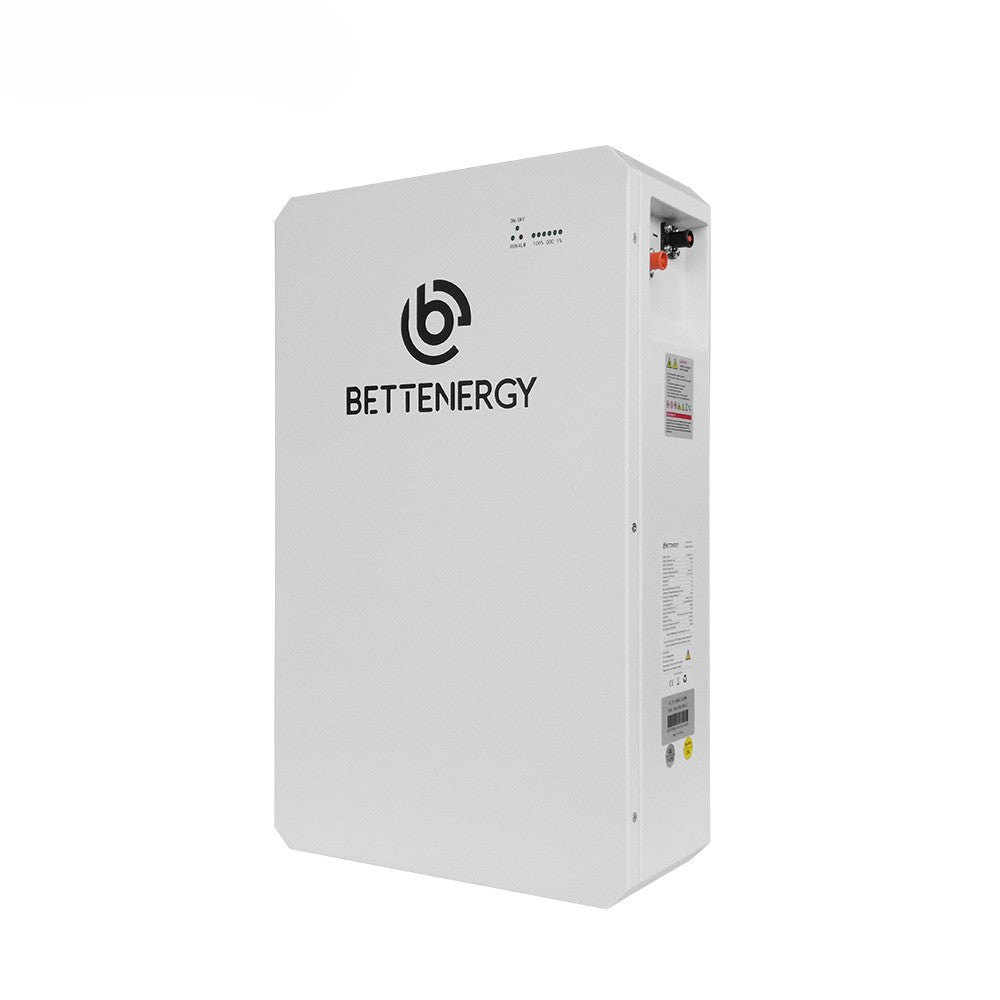

| Home Battery | AGAIC ELESHELL-5K | 5.12 kWh (5120 Wh), 51.2V LFP, wall or floor mounted, IP54, >6000 cycles |
Kit Highlights
- Complete Hybrid System — Inverter + battery paired and validated to work seamlessly together out of the box
- 5kW Continuous Output — Powers essential home loads: refrigerator, lighting, WiFi, well pump, and small HVAC during outages
- 5.12 kWh Usable Storage — Typically delivers 4–8 hours of backup runtime for critical circuits, expandable by adding more ELESHELL-5K units (up to 15 in parallel)
- 48V MPPT Solar Charging — Connect up to ~6kW of PV panels to recharge the battery directly from sunlight
- Seamless Backup — Automatic transfer to battery power within milliseconds when the grid fails
- Scalable — Add more ELESHELL-5K batteries in parallel (up to 15 units / ~76.8 kWh) as your energy needs grow
- Safe LFP Chemistry — LiFePO4 cells offer superior thermal stability and a long service life
- 10% Bundle Savings — Kit price is $2,398 vs $2,664 buying components separately — you save $266
Combined System Specifications
| Total Inverter Power | 5000 W (5 kW) continuous |
| Total Battery Capacity | 5.12 kWh (5120 Wh) per kit (expandable) |
| Battery Voltage | 51.2 V DC (LFP) |
| Inverter Type | 48V Hybrid MPPT (on-grid + off-grid) |
| Max PV Input | Up to ~6000 W (depending on array design) |
| Backup Runtime (critical loads) | ~4–8 hours (varies with load) |
| Max Parallel Batteries | 15 (up to ~76.8 kWh total) |
| Communication | RS232 / RS485 / CAN |
| Certifications | CE / IEC62619 / UN38.3 (battery); CE (inverter) |
| Warranty | 10 years (manufacturer limited warranty) |
Ideal For
- Homeowners wanting a turnkey backup power + solar self-consumption system
- Off-grid cabins, farms, and remote properties
- Small businesses needing reliable backup during outages
- Anyone expanding an existing AGAIC solar installation
What's in the Box
- 1 × AGAIC SPF 5000 ES 5kW Hybrid Solar Inverter (48V MPPT)
- 1 × AGAIC ELESHELL-5K 5.12kWh Wall-Mounted Battery (51.2V LFP)
- 1 × Battery communication cable (CAN/RS485)
- 1 × Wall-mounting bracket kit (battery)
- User manuals & quick-start guides (English)
Warranty & Support
10-year manufacturer limited warranty from AGAIC POWER. Full technical support and after-sales service available worldwide. Both components are individually warranted; the kit ships as a paired system for simplified installation.
Frequently Asked Questions
What is included in the 5kW Hybrid Solar System Kit?
The kit includes the SPF 5000 ES 5kW hybrid inverter and the ELESHELL-5K 5.12kWh LiFePO4 battery, plus connecting cables. Solar panels can be added separately or bundled.
How many solar panels do I need?
About 5-6 x 400W panels (a 2-2.5kW array) are recommended to fully utilize the 5kW inverter.
Is it plug-and-play?
The system is pre-configured. Professional installation is recommended for grid-tie connection and whole-home backup.
Can it power my whole house?
It covers essentials such as lights, refrigerator, Wi-Fi and outlets. Size up the battery or inverter for a full load.
What warranties apply?
The inverter carries a 5-year warranty and the battery a 10-year warranty.
