AGAIC DAHAI HonT Series On-Grid Inverter 10-17kW Three-Phase for Commercial Grid-Tie

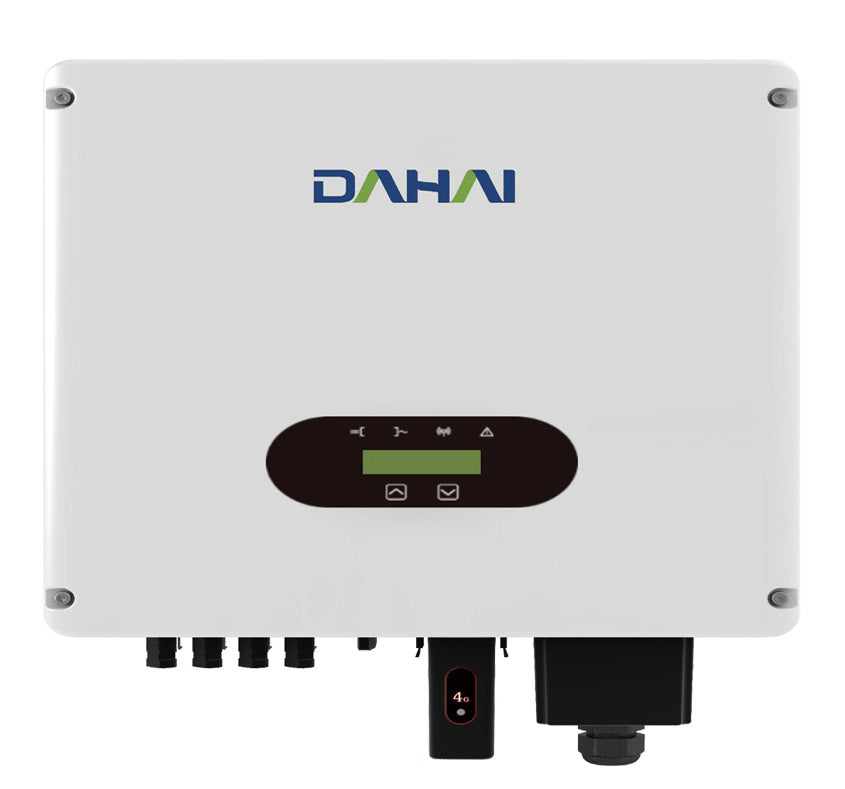

DAHAI HonT Series Three-Phase On-Grid Inverter (10-17KW)
The HonT series is a high-efficiency three-phase on-grid inverter with dual-MPPT design for commercial and industrial solar systems.
Key Features:
- Power Range: 10KW - 17KW
- Three-phase & dual-MPPT design
- Maximum Efficiency: 98.5%
- European Efficiency: 98%
- Wide MPPT voltage range: 180-1000V
- Transformerless design
- Multi-communication interface: RS485, WiFi, GPRS
- IP66 protection rating
- Intelligent forced air cooling
Technical Specifications
| Parameter | HonT-10K | HonT-12K | HonT-15K | HonT-17K | ||
|---|---|---|---|---|---|---|
| Rated Output Power | 10000W | 12000W | 15000W | 17000W | ||
| Rated Output Voltage | 380 / 400 / 415V AC, 3-Phase | |||||
| Rated Output Frequency | 50 / 60Hz | |||||
| Max PV Input Power | 15000W | 18000W | 22500W | 25500W | ||
| Max Input Voltage (PV) | 1000V DC | |||||
| MPPT Voltage Range | 180 – 1000V DC | |||||
| No. of MPPT Trackers | 2 | |||||
| Max Input Current per MPPT | 13A / 13A | |||||
| Max Output Current | 15.2A | 18.2A | 22.7A | 25.8A | ||
| Topology | Transformerless | |||||
| Max Efficiency | 98.5% | |||||
| European Efficiency | 98.0% | |||||
| Protection Rating | IP66 | |||||
| Cooling | Intelligent Forced Air Cooling | |||||
| Display | LED / LCD (optional) | |||||
| Communication | RS485, WiFi, GPRS | |||||
| Dimensions (W x H x D) | 482 x 420 x 198 mm | |||||
| Weight | 20kg | 21kg | 22kg | 23kg | ||
| Operating Temperature | -25 ~ +60 °C | |||||
| Warranty | 5 Years (standard) | |||||
Frequently Asked Questions
Q: Does the AGAIC DAHAI HonT Series On-Grid Inverter 10-17K send excess power back to the grid?
A: Yes. As an on-grid (grid-tie) inverter, the AGAIC DAHAI HonT Series On-Grid Inverter 10-17K feeds surplus solar energy to the utility grid and supports net metering where available, helping reduce your electricity bill.
Q: Do I need batteries with this inverter?
A: No. On-grid inverters work without batteries - they convert solar DC to AC for immediate home use and export the rest. Add batteries only if you want backup or self-consumption, which requires a hybrid inverter.
Q: Which solar panels is it compatible with?
A: The AGAIC DAHAI HonT Series On-Grid Inverter 10-17K accepts a wide range of PV modules within its MPPT voltage and current range. See the Technical Specifications table above for exact PV input limits, and pair with AGAIC panels for a matched system.
Q: How do I monitor the system?
A: AGAIC inverters include monitoring via a mobile app and web portal, showing real-time generation, daily yield, and system status.
Q: What protections does it have?
A: Built-in protections include anti-islanding, over/under-voltage, over-temperature, and short-circuit protection, with an IP65-rated housing for outdoor installation.
Q: What is the warranty?
A: AGAIC POWER provides a 5-year standard warranty on inverters, extendable in most regions.
