AGAIC DAHAI HonT Series On-Grid Inverter 20-25kW Three-Phase for Commercial Grid-Tie

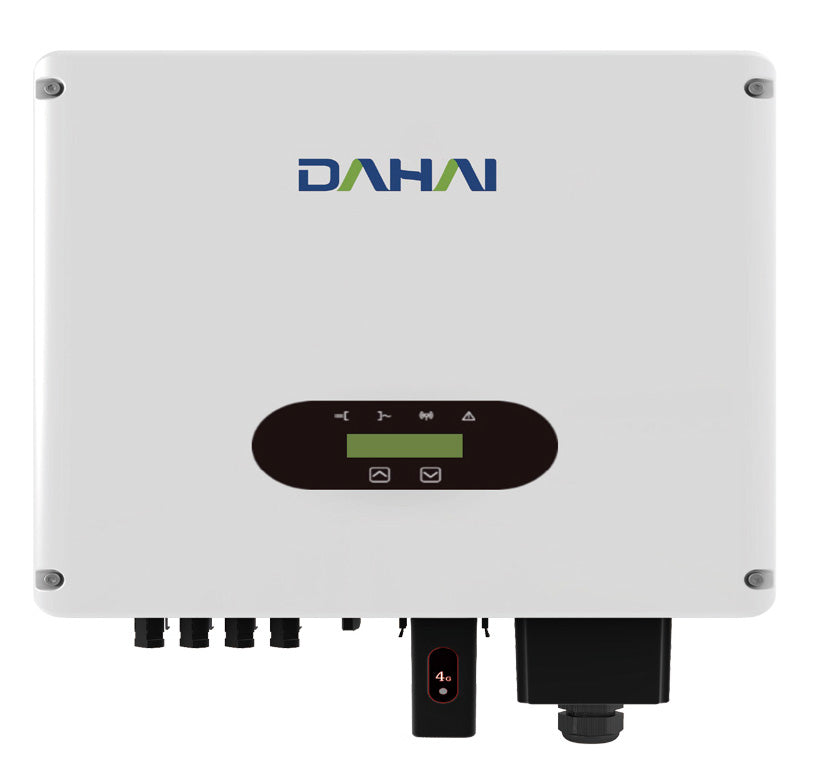

DAHAI HonT Series High-Power Three-Phase On-Grid Inverter (20-25KW)
The HonT high-power series is designed for large-scale commercial and industrial solar installations with superior efficiency and reliability.
Key Features:
- Power Range: 20KW - 25KW
- Three-phase & dual-MPPT design
- Maximum Efficiency: 98.6%
- European Efficiency: 98.2%
- Wide MPPT voltage range: 180-1000V
- Transformerless design
- Multi-communication interface: RS485, WiFi, GPRS
- IP66 protection rating
- Intelligent forced air cooling
- High overload capability
Technical Specifications
| Parameter | HonT-20K | HonT-25K | ||
|---|---|---|---|---|
| Rated Output Power | 20000W | 25000W | ||
| Rated Output Voltage | 380 / 400 / 415V AC, 3-Phase | |||
| Rated Output Frequency | 50 / 60Hz | |||
| Max PV Input Power | 30000W | 37500W | ||
| Max Input Voltage (PV) | 1000V DC | |||
| MPPT Voltage Range | 180 – 1000V DC | |||
| No. of MPPT Trackers | 2 | |||
| Max Input Current per MPPT | 26A / 26A | |||
| Max Output Current | 30.3A | 37.9A | ||
| Topology | Transformerless | |||
| Max Efficiency | 98.6% | |||
| European Efficiency | 98.2% | |||
| Protection Rating | IP66 | |||
| Cooling | Intelligent Forced Air Cooling | |||
| Display | LED / LCD (optional) | |||
| Communication | RS485, WiFi, GPRS | |||
| Dimensions (W x H x D) | 535 x 480 x 225 mm | |||
| Weight | 28kg | 31kg | ||
| Operating Temperature | -25 ~ +60 °C | |||
| Warranty | 5 Years (standard) | |||
Frequently Asked Questions
Q: Does the AGAIC DAHAI HonT Series On-Grid Inverter 20-25K send excess power back to the grid?
A: Yes. As an on-grid (grid-tie) inverter, the AGAIC DAHAI HonT Series On-Grid Inverter 20-25K feeds surplus solar energy to the utility grid and supports net metering where available, helping reduce your electricity bill.
Q: Do I need batteries with this inverter?
A: No. On-grid inverters work without batteries - they convert solar DC to AC for immediate home use and export the rest. Add batteries only if you want backup or self-consumption, which requires a hybrid inverter.
Q: Which solar panels is it compatible with?
A: The AGAIC DAHAI HonT Series On-Grid Inverter 20-25K accepts a wide range of PV modules within its MPPT voltage and current range. See the Technical Specifications table above for exact PV input limits, and pair with AGAIC panels for a matched system.
Q: How do I monitor the system?
A: AGAIC inverters include monitoring via a mobile app and web portal, showing real-time generation, daily yield, and system status.
Q: What protections does it have?
A: Built-in protections include anti-islanding, over/under-voltage, over-temperature, and short-circuit protection, with an IP65-rated housing for outdoor installation.
Q: What is the warranty?
A: AGAIC POWER provides a 5-year standard warranty on inverters, extendable in most regions.
