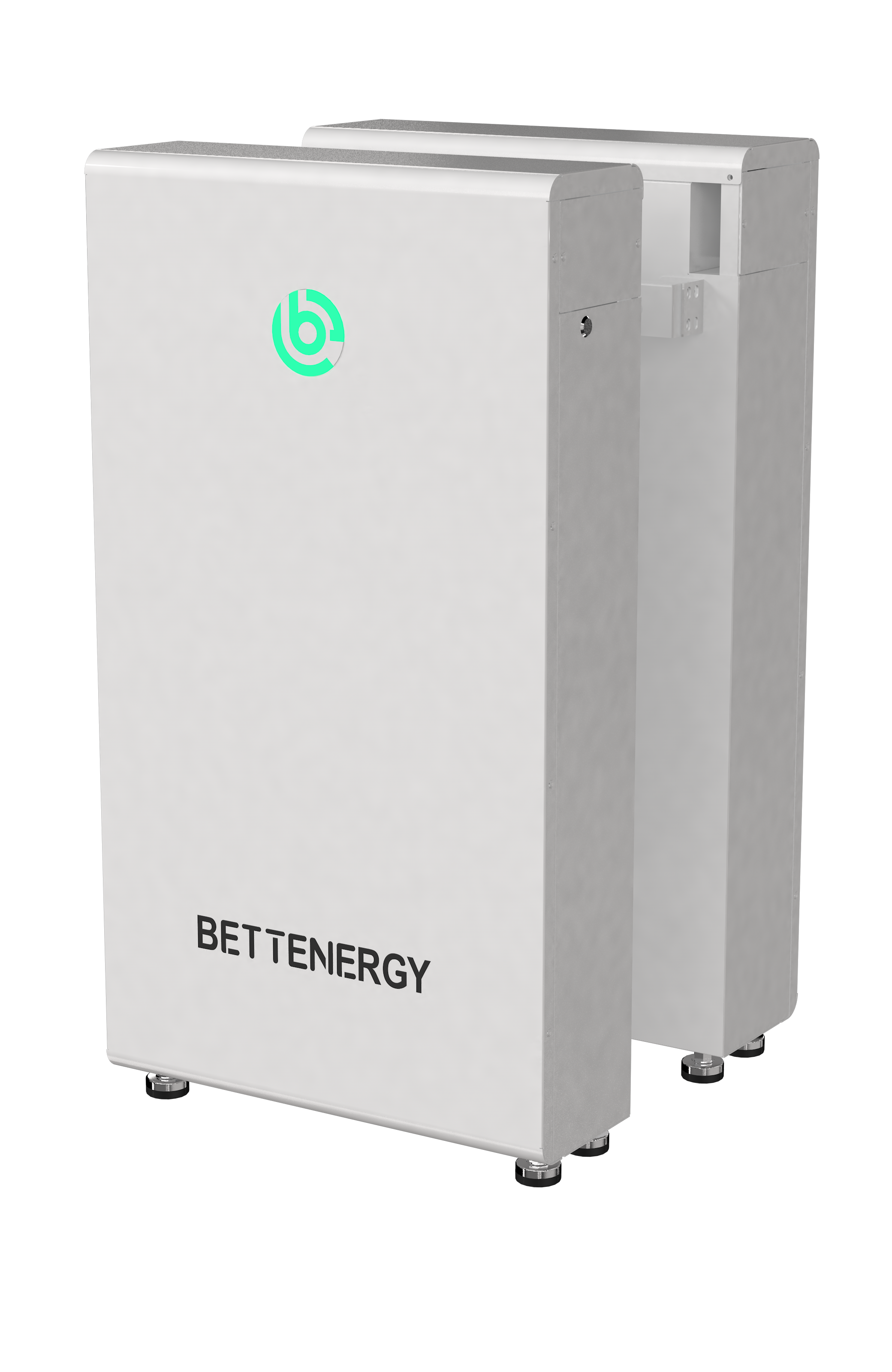

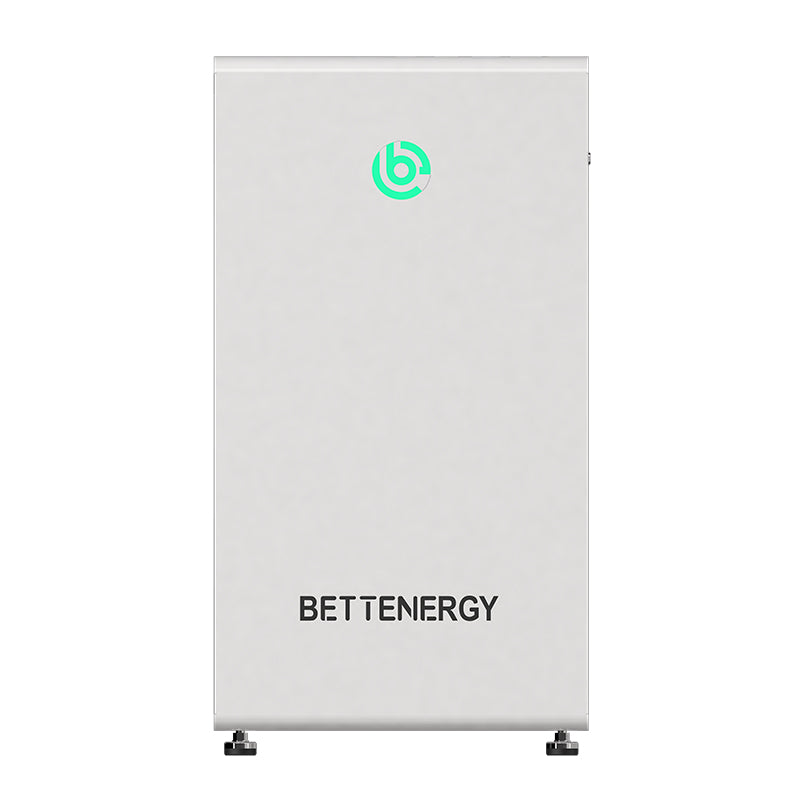

AGAIC ELESHELL-16Kplus Low Voltage Home Energy Storage Battery
$1,699.99
Sale price
$1,699.99
Regular price
$2,099.99
Skip to product information
AGAIC ELESHELL-16Kplus Low Voltage Home Energy Storage Battery
$1,699.99
Sale price
$1,699.99
Regular price
$2,099.99

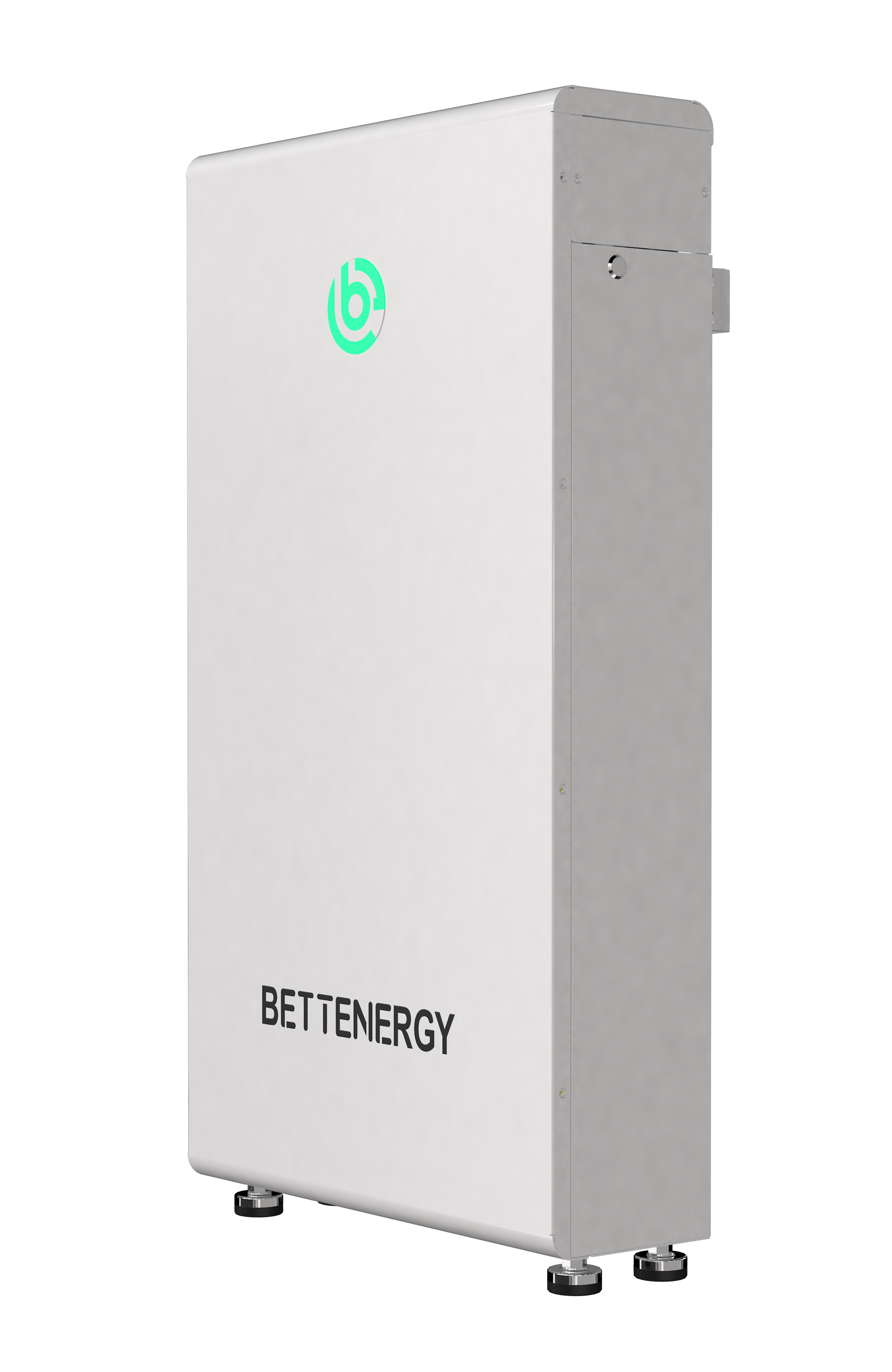

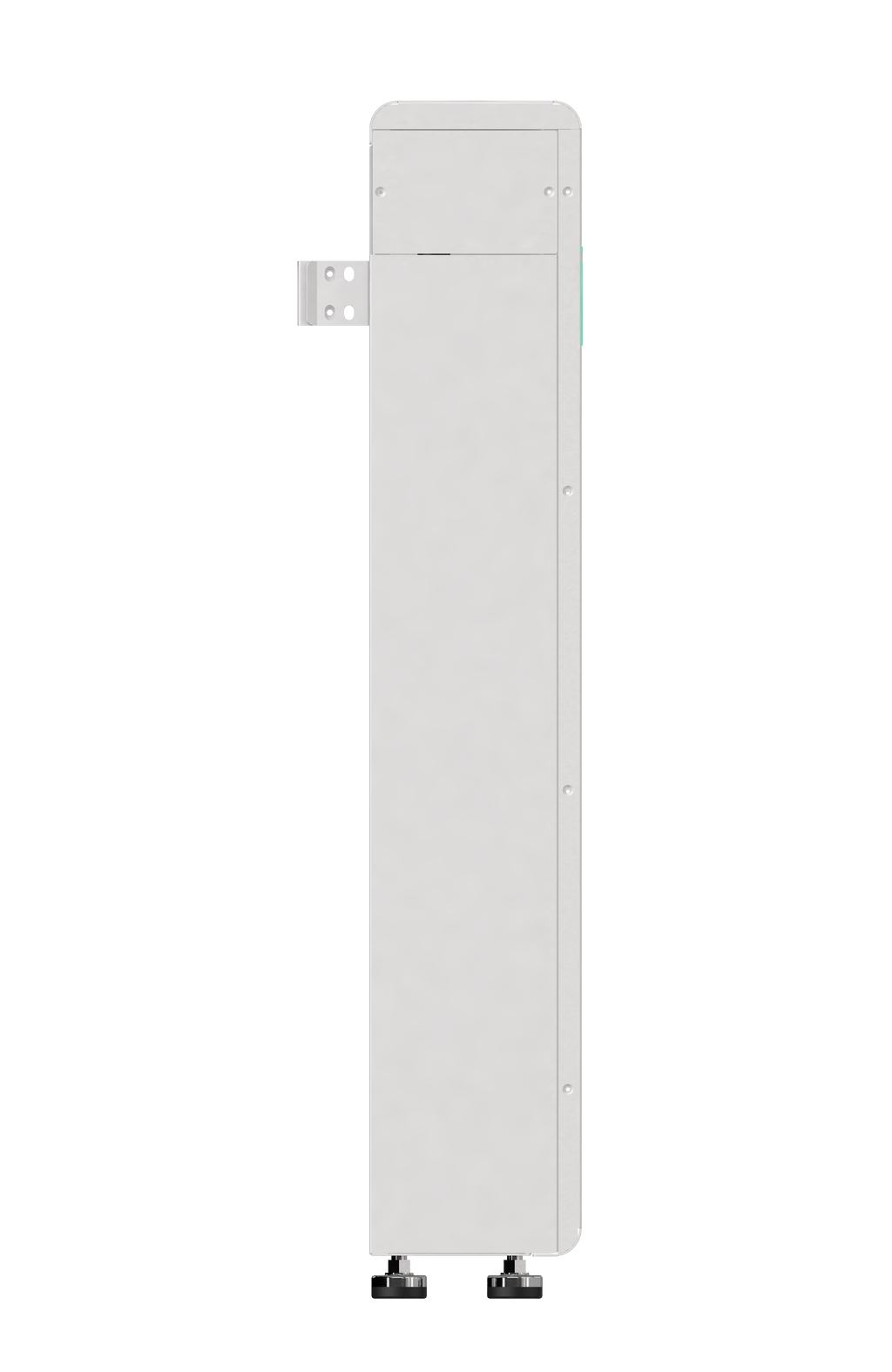

AGAIC ELESHELL-16Kplus — Low Voltage Home Energy Storage Lithium Battery
The AGAIC ELESHELL-16Kplus is a premium low-voltage household energy storage lithium battery designed for residential solar systems. With 16,076Wh of usable capacity and advanced LiFePO4 (LFP) cell technology, it delivers safe, reliable, and long-lasting energy storage for your home. Backed by a 5/10-year warranty and certified to UN38.3, CE, and IEC62619 standards.
Key Features
- 16,076Wh High Capacity — 51.2V nominal voltage with substantial energy storage for whole-home solar self-consumption
- LiFePO4 (LFP) Chemistry — Industry-leading safety, thermal stability, and ultra-long cycle life
- 5/10-Year Warranty — Industry-leading warranty coverage for peace of mind
- Scalable Parallel Design — Connect up to 15 units in parallel for massive capacity expansion
- Multi-Protocol Communication — RS485, CAN, RS232, and WiFi for universal inverter compatibility
- IP54 Protection Rating — Dust and water-resistant design for reliable indoor installation
- Natural Cooling — Silent, maintenance-free passive cooling with no fans required
- Floor-Mount Installation — Simple, space-efficient floor-standing design
- Wide Operating Range — Reliable operation from 0°C to 55°C, suitable for most indoor environments
- UN38.3 / CE / IEC62619 Certified — Meets international safety and transport standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ELESHELL-16Kplus |
| Battery Capacity | 16,076Wh |
| Cell Configuration | 1P16S |
| Cell Type | LFP (LiFePO4) |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 46.4V ~ 57.6V |
| Max Charge / Discharge Current | 140A / 200A |
| Continuous Charge / Discharge Current | 130A / 140A |
| Max Output Power | 10,240W |
| Max Charging Power | 7,168W |
| Max Parallel Units | 15 |
| Communication | RS485 / CAN / RS232 / WiFi |
| Protection Rating | IP54 |
| Cooling | Natural Cooling (Fanless) |
| Installation | Floor-standing |
| Dimensions (H×W×D) | 900×500×165mm |
| Weight | 122kg |
| Operating Temperature | 0°C ~ 55°C |
| Operating Humidity | ≤95% RH (non-condensing) |
| Max Operating Altitude | ≤3000m |
| Storage Temperature | ≤25°C (12 months), ≤35°C (6 months), ≤45°C (3 months) |
| Certifications | UN38.3, CE, IEC62619, MSDS |
System Integration
The ELESHELL-16Kplus seamlessly integrates with your home solar system:
- Solar PV — Store excess solar energy during the day for use at night
- Grid Connection — Smart energy management with grid charging during off-peak hours
- Home Loads — Powers your essential home appliances with clean, stored energy
- Data Monitoring — Real-time monitoring via WiFi connectivity and compatible energy management systems
- CT & Power Meter — Precise energy measurement for optimal self-consumption
What's in the Box
- ELESHELL-16Kplus Battery Module
- Mounting hardware (floor-mount)
- Communication cables
- User manual
