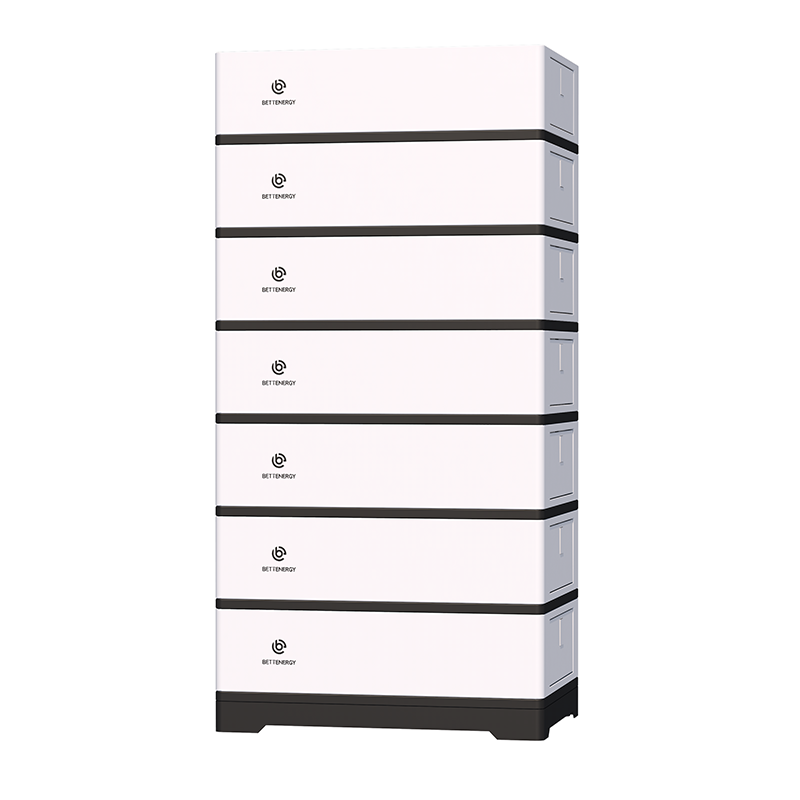

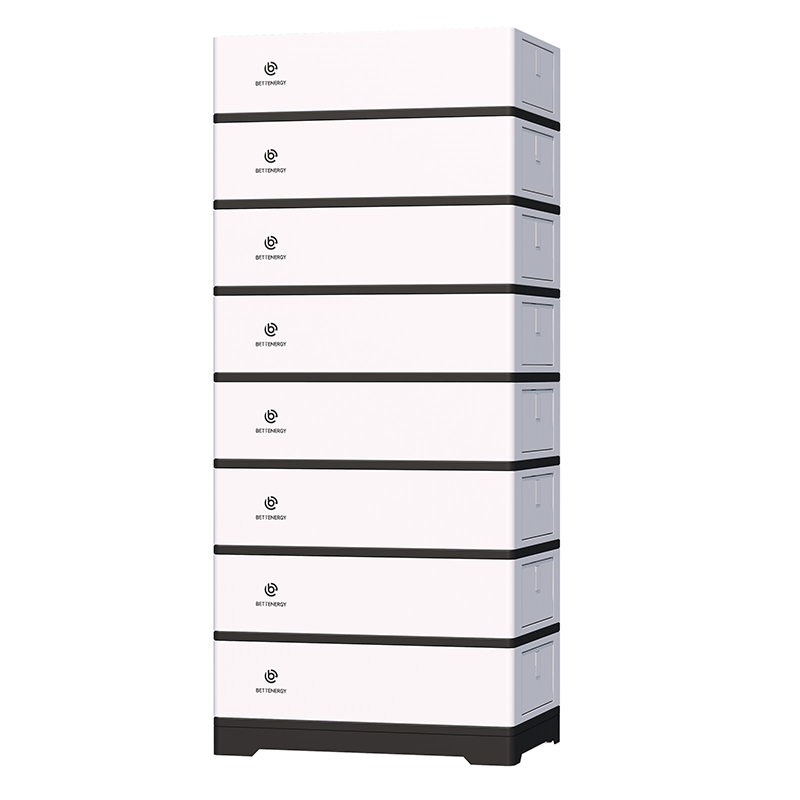

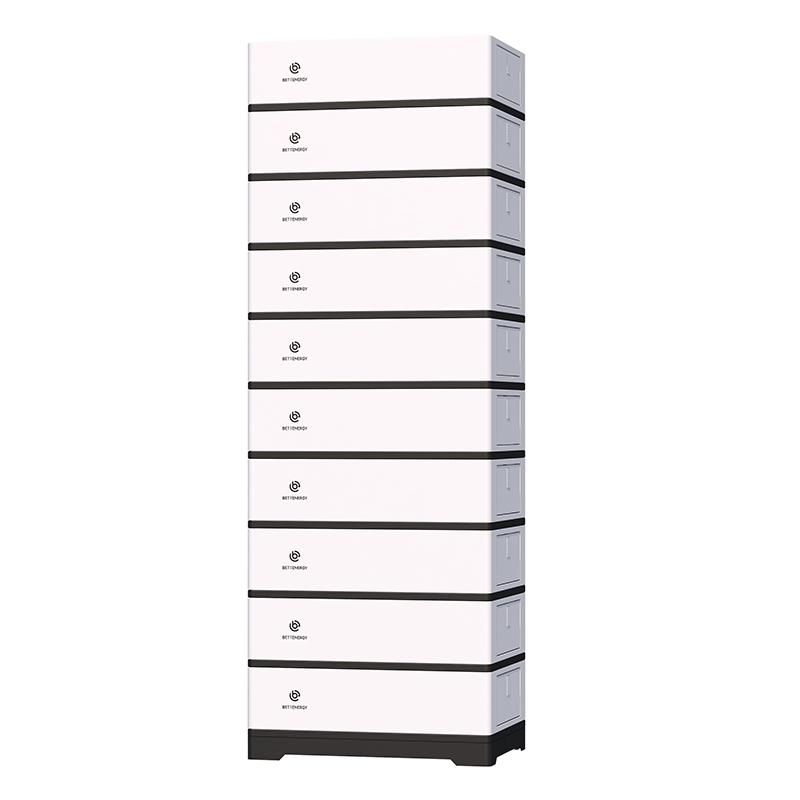

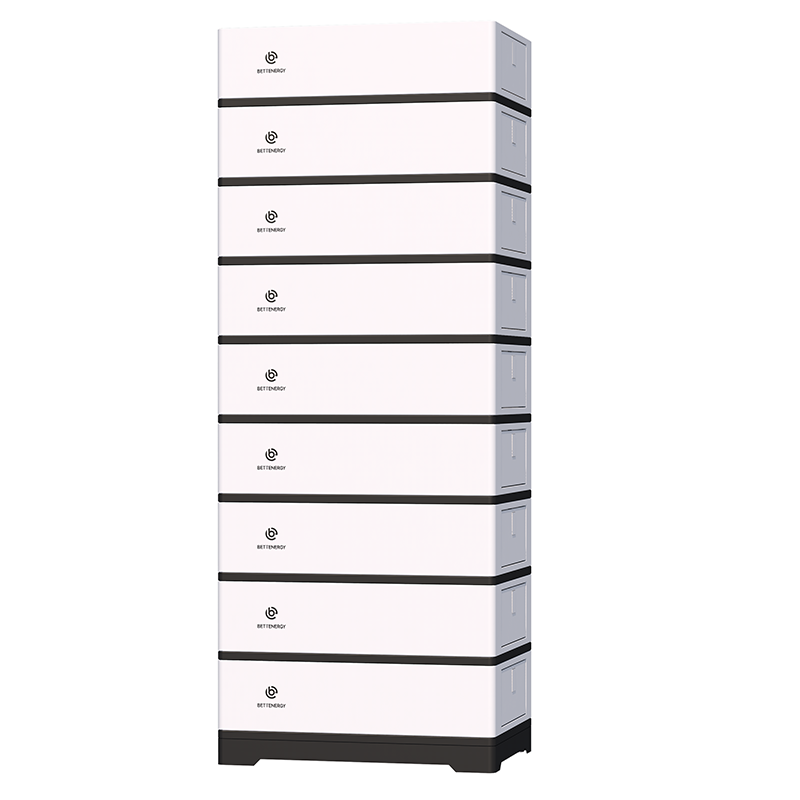

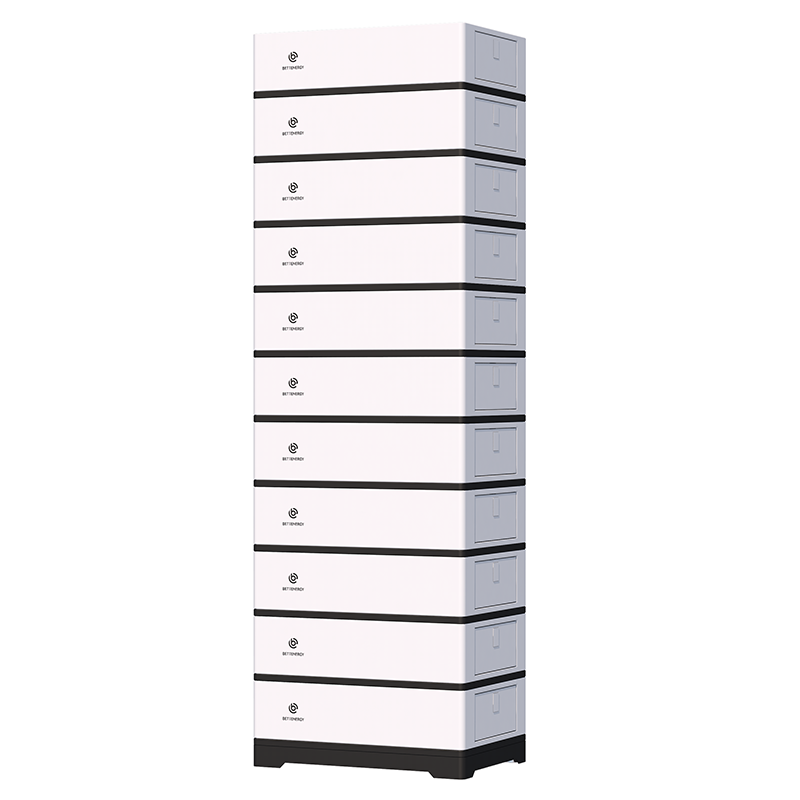

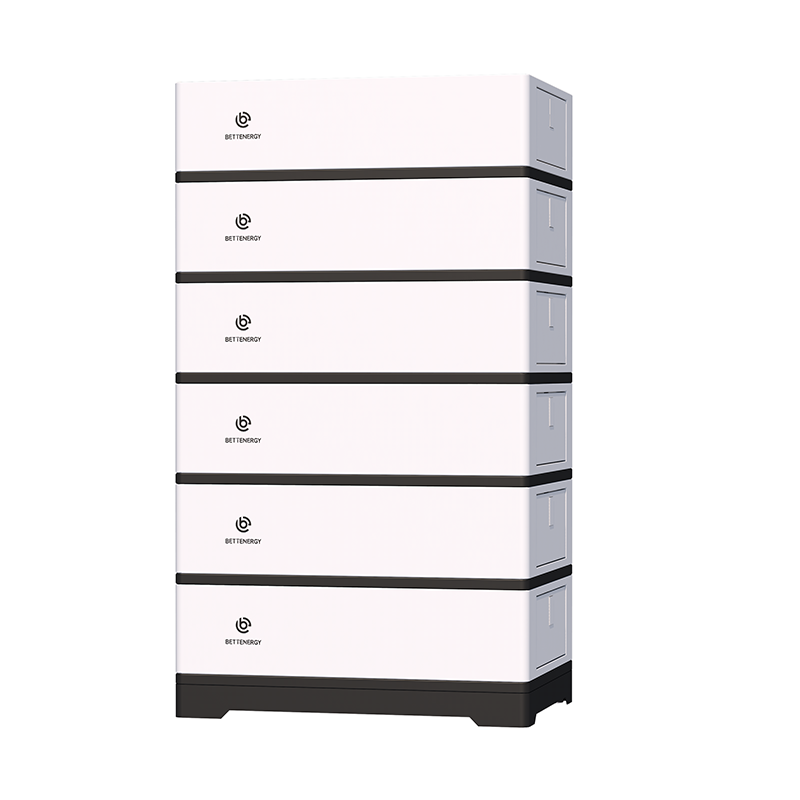

AGAIC ELEBOX-5K-HV High Voltage Stacked Battery 5kWh Modular for Whole-Home Backup
AGAIC ELEBOX-5K-HV High Voltage Stacked Battery
The ELEBOX-5K-HV is a modular high-voltage stacked lithium battery designed for household energy storage. With 3-10 stackable 5.12kWh modules, it delivers 15.36kWh to 51.2kWh of flexible storage capacity at 153.6V to 512V.
Key Features
- Stackable Design: 3-10 modules for flexible capacity from 15.36kWh to 51.2kWh
- High Voltage: 153.6V-512V system voltage for faster charging/discharging
- LFP Cell Technology: Superior safety and long cycle life (≥6000 cycles @ 80% DOD)
- IP65 Protection: Dust-tight and water-resistant for reliable indoor/outdoor installation
- Smart Communication: CAN/RS485 ports for seamless BMS integration
- Natural Cooling: Silent operation with no active cooling required
- Floor-Mounted Stacking: Easy installation without wall mounting
Specifications
| Module Capacity | 5.12kWh, 51.2V |
|---|---|
| Module Dimensions | 630 × 390 × 169 mm |
| Module Weight | 52 kg |
| Cell Type | LFP (LiFePO4) |
| Max Charge/Discharge | 55A / 55A |
| Continuous Current | 50A / 50A |
| Cycle Life | ≥6000 (80% DOD, 25°C) |
| Protection Rating | IP65 |
| Operating Temperature | 0°C ~ 55°C |
| Communication | CAN / RS485 |
| Installation | Stacked Floor Mount |
| Certifications | CE, IEC62619, UN38.3 |
Frequently Asked Questions
Q: What is the AGAIC ELEBOX-5K-HV High Voltage Stacked Battery compatible with?
A: The AGAIC ELEBOX-5K-HV High Voltage Stacked Battery works with AGAIC hybrid and off-grid inverters that match its voltage class (high-voltage or low-voltage as specified). It is ideal for whole-home backup and daily solar self-consumption.
Q: Can I expand the capacity later?
A: Yes. AGAIC battery systems are modular - you can add more modules or stacks to increase total capacity as your energy needs grow, within the inverter supported limit.
Q: How long will the battery last?
A: Built with LiFePO4 cells, the AGAIC ELEBOX-5K-HV High Voltage Stacked Battery delivers 6000+ charge cycles (typically 10+ years of daily use) while retaining most of its capacity - far longer than lead-acid alternatives.
Q: Is it safe to install in my home?
A: Yes. LiFePO4 is one of the safest battery chemistries, and each module includes a Battery Management System (BMS) for over-charge, over-discharge, and thermal protection. Professional installation is still recommended.
Q: Do I need a professional to install it?
A: For whole-home systems we strongly recommend certified installer setup to ensure code compliance and safe integration with your inverter and grid connection.
Q: What is the warranty?
A: AGAIC POWER backs the AGAIC ELEBOX-5K-HV High Voltage Stacked Battery with a 5-10 year limited warranty depending on model. See the product page for exact terms.
