Spain CSP-PV-BESS Hybrid Power Plant Analysis: Solaben 100MW/400MWh Storage Integration Explained
On July 10, 2026, the Spanish government opened a 15-working-day public consultation for what may become one of Europe's most technically sophisticated renewable energy installations: the addition of 100 MW / 400 MWh of lithium-ion battery storage to the existing Solaben concentrated solar power (CSP) and photovoltaic hybrid complex in Logrosán, Cáceres province, Extremadura. The project — proposed by Cox Energy, which acquired the Solaben assets from the legacy Abengoa portfolio — would add 36 Hithium 6.25 MWh battery containers (or equivalent) across two sub-projects (Solaben ST1 and ST6), each receiving 50 MW / 200 MWh of BESS capacity with 4-hour discharge duration. With a combined construction budget of approximately €43.24 million, this project represents the next frontier of renewable hybridization: the triple-technology integration of CSP thermal storage, photovoltaic generation, and electrochemical battery storage at a single grid interconnection point.
Overview of the Solaben CSP-PV-BESS Hybrid: A Triple-Technology Energy Complex

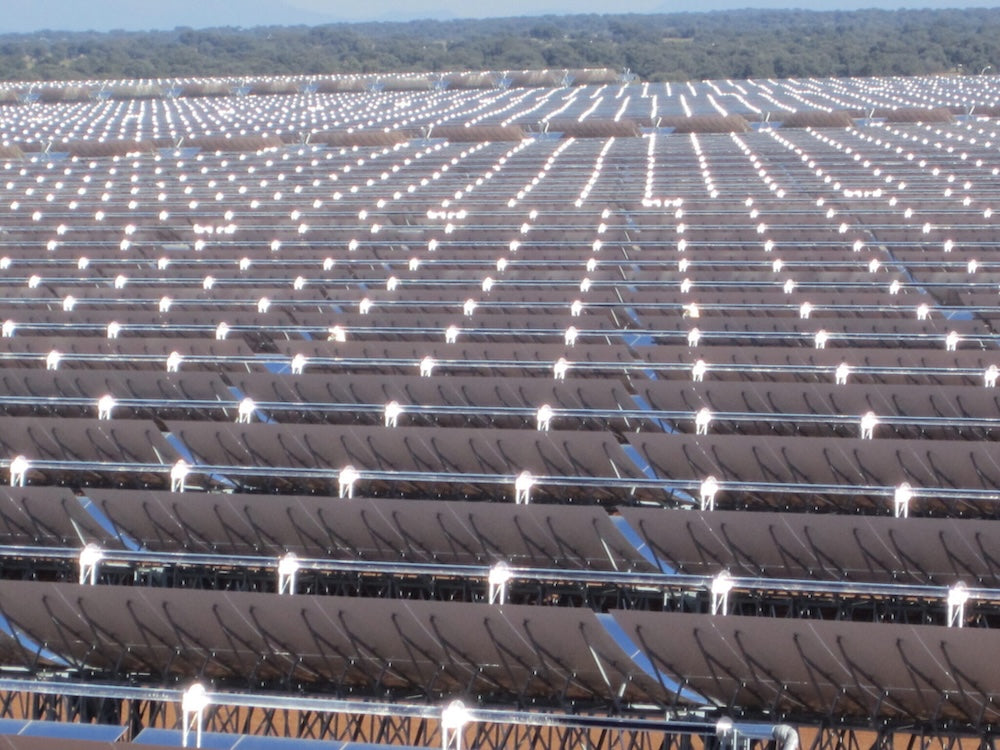

The Solaben complex — one of Spain's and Europe's largest CSP installations — originally consisted of four 50 MW parabolic trough CSP plants (Solaben ST1, ST2, ST3, and ST6) built between 2012 and 2013 by Abengoa, the now-restructured Spanish renewable energy conglomerate. Each plant uses parabolic trough collector technology: rows of curved mirrors that concentrate sunlight onto synthetic oil-filled receiver tubes, heating the oil to approximately 393°C, which then generates steam to drive a conventional steam turbine generator. The key differentiator of CSP versus PV is thermal energy storage: each Solaben plant includes molten salt thermal storage (a mixture of 60% sodium nitrate and 40% potassium nitrate) capable of storing thermal energy for 7-8 hours of turbine operation after sunset, providing dispatchable solar generation into evening peak demand hours.
The first hybridization phase — adding photovoltaic generation alongside the existing CSP plants — began in 2024 when Cox Energy initiated permitting for PV arrays at the Solaben site. While specific PV capacity figures have not been publicly disclosed for the current configuration, the Solaben site's extensive land area and excellent solar resource (Extremadura receives approximately 1,800-2,000 kWh/m²/year of direct normal irradiance, among Spain's highest) make PV hybridization economically compelling: PV generates electricity at roughly one-third to one-half the levelized cost of CSP (approximately €25-40/MWh for utility-scale PV in Spain versus €80-120/MWh for CSP), and when combined with CSP's thermal storage providing evening dispatchability, the hybrid plant can deliver firm, shapeable renewable generation at a blended cost substantially below standalone CSP.
The second hybridization phase — adding 100 MW / 400 MWh of lithium-ion BESS — completes the technology trifecta. Each Solaben ST1 and ST6 will receive approximately 36 Hithium 6.25 MWh battery containers, or equivalent equipment from alternative suppliers, providing 4 hours of rated discharge at each plant. The BESS serves a fundamentally different role than the CSP thermal storage: while thermal storage provides low-cost, long-duration (7-8 hour) bulk energy shifting from daytime to evening, the lithium BESS provides fast-responding capacity for grid ancillary services (frequency regulation, voltage support, ramp rate control) and shorter-duration energy arbitrage that the thermal storage system — with its 30-60 minute startup time from cold — cannot economically provide.
Why This Development Matters: The Hybridization Imperative for Legacy CSP Assets
The Solaben BESS addition is significant because it addresses the fundamental economic challenge facing Europe's legacy CSP fleet. Spain's 2.3 GW of installed CSP capacity — the largest in Europe and second globally only to the United States — was built between 2008 and 2013 under a feed-in tariff regime that provided guaranteed prices well above current wholesale market levels. As these feed-in tariffs expire (most between 2028 and 2033), CSP plants face the prospect of operating in merchant wholesale markets where daytime prices have been driven down by massive PV deployment — Spain added over 25 GW of solar PV between 2019 and 2025 — while evening prices remain elevated due to the loss of solar generation at sunset.
PV hybridization provides a partial solution by enabling CSP plants to economically generate during daytime hours when standalone CSP would be uncompetitive, reserving the thermal storage for higher-value evening dispatch. But the missing piece — and the gap that the Solaben BESS fills — is the fast-ramping capability that neither CSP (30-60 minute cold start) nor PV (instantaneous but weather-dependent) can provide independently. The BESS can respond to grid frequency deviations within 200 milliseconds, provide synthetic inertia to compensate for the declining rotational inertia as conventional synchronous generators retire, and capture the high-value ancillary services revenue that is increasingly important for renewable generator economics in markets with high renewable penetration.
The €43.24 million investment (€21.62 million per 50 MW / 200 MWh sub-project, or approximately €108/kWh of storage capacity) is economically viable precisely because of these stacked revenue streams: energy arbitrage (charging from low-cost midday PV and discharging during high-price evening hours), ancillary services (frequency regulation, voltage support, and potentially black start capability), and grid congestion management (the Extremadura region has some of Spain's highest PV penetration and experiences significant midday transmission congestion, creating locational price spreads that storage can capture). Browse AGAIC POWER's commercial and utility battery storage products for hybrid renewable applications.
Technical Deep Dive: Triple-Technology Dispatch Optimization and Control Architecture
The engineering challenge of operating a CSP-PV-BESS hybrid plant is the real-time dispatch optimization across three energy resources with fundamentally different operating characteristics. CSP thermal storage has the lowest variable operating cost (the "fuel" — sunlight — is free, and the thermal storage medium has negligible degradation over cycles) but the slowest response time (30-60 minutes from cold start of the steam turbine) and minimum stable generation constraints (the steam turbine cannot operate below approximately 20-30% of rated capacity without risking blade vibration damage). PV has zero variable cost and instant response but zero dispatchability — output is determined entirely by solar irradiance at each moment. BESS has the fastest response (sub-200ms) but the highest variable cost per cycle (battery degradation of approximately 0.01-0.03% capacity loss per full equivalent cycle, representing a levelized cost of storage of approximately €30-60/MWh cycled for LFP systems).
The optimal dispatch strategy involves a temporal hierarchy: PV provides baseload daytime generation whenever sunlight is available (zero marginal cost, must-use resource), CSP thermal storage provides the evening dispatch "backbone" from approximately 17:00-01:00 (leveraging its 7-8 hour thermal storage duration at near-zero marginal cost per MWh shifted), and BESS provides: fast frequency response 24/7 (the highest-value ancillary service per MW of capacity, requiring only partial state-of-charge reservation), intra-hour energy arbitrage (capturing short-duration price spikes that the CSP turbine's slow ramp rate cannot exploit), and PV output smoothing (absorbing or supplementing PV output fluctuations from passing clouds to maintain a firm delivery schedule to the grid).
The plant-level energy management system (EMS) must solve a stochastic optimization problem that considers: day-ahead and intra-day electricity price forecasts from OMIE (the Iberian day-ahead market), solar irradiance forecasts (both DNI for CSP and GHI for PV, updated every 15 minutes), CSP thermal storage state-of-charge and turbine availability, BESS state-of-charge and cycle-count constraints, and grid code requirements for reactive power and frequency response. The optimization objective is profit maximization — scheduling each resource to capture the highest-value market segments — subject to the physical and operational constraints of each technology. This is a substantially more complex optimization challenge than standalone PV, CSP, or BESS operations, requiring advanced mixed-integer linear programming (MILP) or reinforcement learning algorithms that are only beginning to be deployed in commercial renewable energy control systems.
Real-World Applications: Dispatchable Renewable Generation for Grid Stability
The Solaben hybrid plant's most valuable real-world application is providing firm, dispatchable renewable generation that can replace conventional thermal generation in grid stability roles. Spain's electricity system — like many European markets — is experiencing a rapid decline in synchronous inertia as coal and nuclear plants retire (Spain's coal fleet has been almost entirely phased out, and its 7 GW nuclear fleet is scheduled for phased retirement between 2027 and 2035). Synchronous inertia — the kinetic energy stored in the rotating masses of conventional generators — provides the grid's natural resistance to frequency changes, and its decline requires replacement by "fast frequency response" resources, primarily BESS, that can inject or absorb power within 500 milliseconds of a frequency deviation.
A 100 MW BESS at Solaben, combined with the 200 MW of CSP turbines and the PV arrays (likely 100-200 MW), creates a single grid interconnection point capable of providing firm renewable capacity of 150-200 MW during evening peak hours — matching or exceeding the firm capacity contribution of a similarly-sized combined-cycle gas turbine, but without fuel costs or carbon emissions. This firm capacity is increasingly valuable in Spain's capacity market and in bilateral power purchase agreements (PPAs) where industrial offtakers — particularly data centers, which have emerged as major electricity consumers in Spain — require 24/7 carbon-free energy matching rather than annual renewable energy matching.
Industry Impact: The European CSP Fleet's Second Life Through Hybridization
The Solaben project is a template for what could become a €3-5 billion hybridization investment opportunity across Europe's existing CSP fleet. Spain's 2.3 GW of CSP, plus additional capacity in Italy, Greece, and France, represents approximately 50 individual CSP plants — most 50 MW parabolic trough designs similar to Solaben — that are approaching the end of their feed-in tariff periods and seeking new revenue models. PV hybridization has already been implemented or permitted at over a dozen Spanish CSP plants, and the addition of BESS represents the logical next step for plants that have completed PV hybridization.
The Hithium equipment selection for Solaben is notable in the context of European energy storage supply chain dynamics. Hithium — one of China's fastest-growing battery manufacturers, with 2025出货量 exceeding 25 GWh — has been aggressively expanding its European presence, with major supply agreements for projects in the UK, Germany, Italy, and now Spain. The 6.25 MWh container format — using Hithium's 314 Ah LFP cells in a 20-foot container with integrated liquid cooling, fire suppression, and power conversion system — has become an industry-standard building block for utility-scale BESS, with most major Chinese and Korean manufacturers now offering similar 5-7 MWh container products. The containerized format reduces on-site construction complexity and cost, enabling faster deployment timelines (typically 6-9 months from delivery to commissioning for a 50 MW installation) compared to custom-built BESS installations.
Future Outlook: Triple Hybridization as the Next Frontier for Renewable Energy
The Solaben project points toward a future where single-technology renewable plants — standalone PV farms, standalone wind farms, standalone CSP plants — become increasingly rare, replaced by multi-technology hybrid plants that combine generation resources with complementary temporal profiles (PV for daytime, wind for nighttime and winter, CSP with storage for evening dispatch) and storage resources with complementary duration and response characteristics (lithium BESS for fast response and short-duration shifting, thermal storage for long-duration bulk energy shifting).
For the global energy storage industry, CSP-PV-BESS hybridization validates a use case that extends beyond Spain's unique CSP fleet. Any large-scale solar installation — whether PV, CSP, or hybrid — can benefit from co-located BESS that provides grid services revenue, output smoothing, and energy arbitrage. As BESS costs continue to decline and grid service markets mature, hybrid solar-plus-storage will likely become the default configuration for new utility-scale solar projects in most markets, rather than the exception. The Solaben project, with its triple-technology architecture, is the most advanced expression of this trend to date — and a preview of the energy generation technology stack that will power the decarbonized grids of the 2030s and beyond.
