Sodium-Ion Modular BESS Analysis: Beyond the 5kWh vs 10kWh vs 16kWh Home Battery Debate

Sodium-Ion Modular BESS Analysis: Beyond the 5kWh vs 10kWh vs 16kWh Home Battery Debate

Overview of the Technology / News

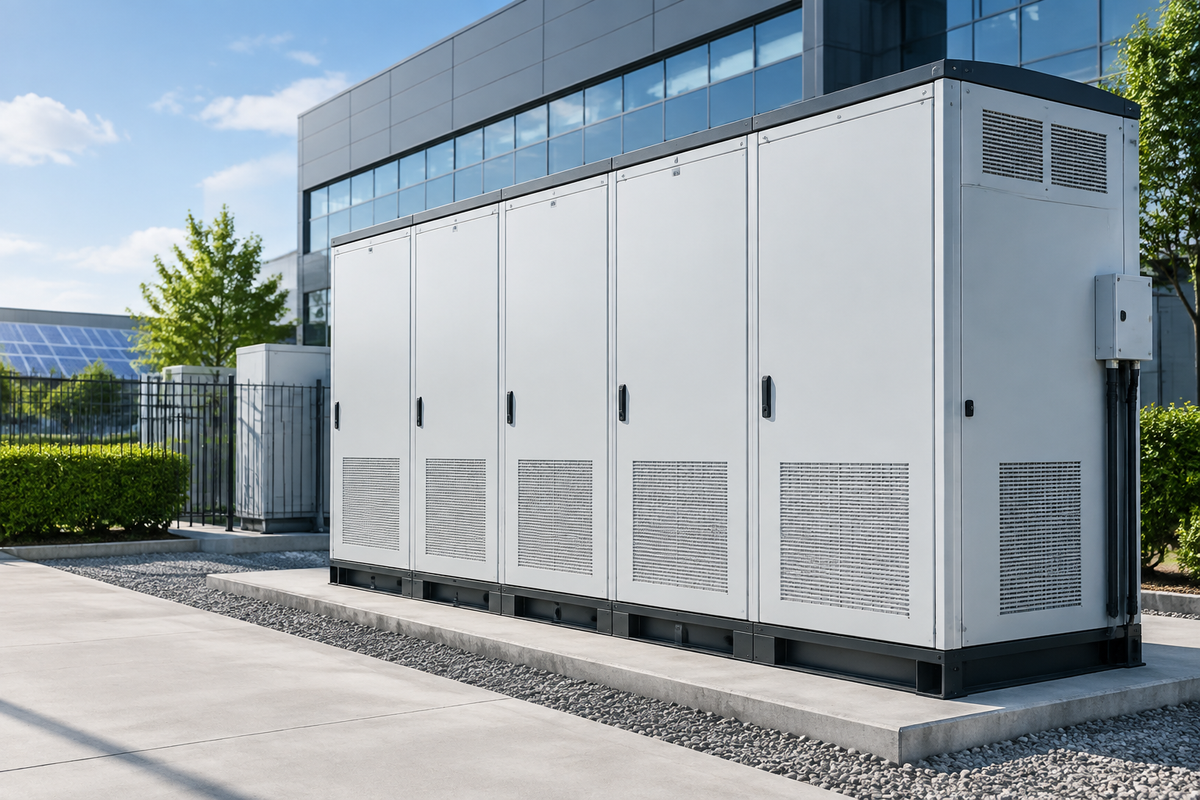

Sodium-ion battery storage cabinet deployed at a commercial facility for peak shaving and backup power

On 15 September 2026, storage integrator Biwatt released the PowerLake I3, a modular sodium-ion battery energy storage system aimed squarely at commercial and industrial (C&I) users. The headline numbers are worth unpacking: a single cabinet delivers 43.6 kWh, but the unit is built from 8.72 kWh battery packs that can be paralleled all the way up to 2092.8 kWh. Inside sits a 170 Ah sodium-ion cell built on an NFPP (sodium iron ferrocyanide / sodium phosphate) cathode chemistry, rated for 8,000 cycles at 25 °C, 0.5 C and 80% depth of discharge, and able to discharge across a −30 °C to 55 °C window. It carries UL 1973, UL 9540A and UN 38.3 certifications.

For anyone who has spent time comparing a 5kWh vs 10kWh vs 16kWh home battery, the instinct is to read this as "just a bigger version of the same thing." It is not. The shift from lithium to sodium changes the underlying economics, the safety envelope and the use cases the system is built for. This analysis explains why a chemistry that most homeowners have never heard of may quietly redefine how businesses size stationary storage — and what that means for the people still weighing small residential units.

Why This Development Matters

The C&I segment lives and dies by two numbers: the spread between peak and off-peak electricity tariffs, and the cost of a battery that can survive daily cycling for a decade. Lithium iron phosphate (LFP) has dominated because it is safe and long-lived, but it is still tethered to a lithium supply chain that swung from roughly $80,000 per tonne of lithium carbonate in 2022 to under $10,000 by 2024 — and could swing again. Every C&I operator watching that roller-coaster understands the risk of building a 2 MWh asset on a commodity whose price is set partly by EV demand they do not control.

Sodium changes the exposure. Sodium is the sixth-most abundant element in the Earth's crust, extracted from seawater and brine at a fraction of lithium's geopolitical concentration. A sodium cell has no lithium, no cobalt, no nickel. For a factory in a cold climate or a business that cannot tolerate a single thermal runaway event, that decoupling is the entire value proposition.

Technical Deep Dive

The NFPP cathode is the heart of the story, and understanding it separates genuine analysis from marketing. Conventional LFP moves lithium ions between electrodes. Sodium-ion moves sodium ions through the same intercalation principle, but the NFPP (polyanion / sodium iron phosphate) framework offers a exceptionally stable crystal structure. Polyoxyanion cathodes trade some energy density for brutal mechanical and thermal stability: the Fe–P–O bonds dissipate heat rather than propagate it, which is why sodium cells keep functioning at −30 °C where LFP capacity collapses.

Modularity is the second engineering layer. The PowerLake I3 is not a monolith; it is 8.72 kWh building blocks. Each block carries its own battery management within a cabinet-level controller that handles state-of-charge balancing, string fusing and fault isolation. Paralleling cabinets to 2092.8 kWh is a matter of busbar and controller configuration, not a bespoke engineering project. That is the same design philosophy behind <a href="https://agaicpower.com/collections/energy-storage">modular battery storage expansion</a> in the residential world — but scaled 120×.

The 8,000-cycle rating deserves a closer read. Cycle life is quoted at 0.5 C and 80% DoD; push to 1 C discharge or 100% DoD and the number falls. This is normal, but it matters for the financial model: a C&I site doing one shallow arbitrage cycle per day will see the full 8,000 cycles; a site doing multiple deep cycles will not.

Real-world Applications

The clearest fit is C&I peak shaving. A mid-size manufacturer paying demand charges can discharge during the 4–8 p.m. peak and recharge overnight, shaving the monthly peak kW that utilities bill against. With 43.6 kWh per cabinet and 2 MWh at the top end, the same product serves a small workshop and a logistics depot.

Backup is the second pillar. Unlike a home battery that might ride through a grid outage for a few hours, a C&I site often needs minutes of clean transition and hours of partial load. Sodium's cold-weather discharge window makes it viable for northern warehouses and food storage that cannot tolerate temperature-driven capacity loss.

Microgrids are the third. Remote industrial sites, agricultural co-ops and islanded facilities can parallel cabinets against <a href="https://agaicpower.com/collections/solar-panels">solar energy systems</a> and generators, using the sodium bank as the stabilising buffer.

Industry Impact / Market Implications

Sodium-ion has been "two years away" for a decade, but 2023–2026 marks the crossover from lab to line. CATL shipped first-generation sodium cells in 2023; NATRON Energy and HiNa Battery have commercialised Prussian-blue and polyanion variants respectively. The strategic logic is simple: stationary storage does not need the 250+ Wh/kg of an EV pack. It needs low cost, safety and cycle life — exactly where sodium wins.

Expect sodium to anchor the stationary tier of the market while lithium stays in mobility. That bifurcation pressures LFP pricing and gives C&I buyers a genuine second option. For a business modelling <a href="https://agaicpower.com/collections/energy-storage">home battery cost per kWh</a> style metrics at scale, sodium's ~30% raw-material cost advantage compounds across thousands of cycles into a meaningful levelised storage cost.

Future Outlook

Over the next two to five years, sodium-ion will likely become the default chemistry for new stationary C&I installs below the utility tier, precisely because its weaknesses (lower energy density, heavier footprint) do not matter when the battery sits in a plant room rather than a vehicle. Durability ratings will climb past 10,000 cycles as polyanion cathodes mature, and certification bodies will standardise sodium-specific safety envelopes beyond today's UL 1973 / UL 9540A mappings.

For residential buyers still debating a 5kWh vs 10kWh vs 16kWh home battery, the takeaway is indirect but real: the chemistry competition happening upstream is what will eventually pull down the cost and raise the safety of every smaller unit on the market. The 16 kWh home bank of 2028 may well owe its price curve to the 2 MWh sodium cabinet shipping today.
