Intertek CEA 587Ah Large-Format LFP Cell BESS Cost Reduction 2027 Analysis: Module Energy Density, Lithium Price and Cell Roadmap Impact Explained

On July 14, 2026, US-based solar and energy storage research firm Intertek CEA (Clean Energy Associates) released its Q1 2026 energy storage system price forecast, delivering a nuanced message about BESS cost trajectories: despite a roughly threefold increase in lithium carbonate prices since mid-2025 — driven by sulfur import disruptions affecting lithium processing and cathode material shortages — the industry's transition to 587 ampere-hour (Ah) large-format LFP cells is projected to drive meaningful BESS cost reductions through 2027. The report's central insight is a structural analysis of where costs sit in the BESS value chain: lithium represents only approximately 2% of total BESS system cost (the battery cell accounts for about 18% of system cost, and lithium carbonate represents about 10-12% of cell cost), meaning that the balance-of-system (BoS) savings enabled by larger cell formats can comfortably exceed the cost impact of lithium price increases. CATL began mass production of its 587Ah cell in June 2025, shipped 2 GWh of 587Ah-based systems by year-end 2025, and is now ramping toward multi-gigawatt-hour scale. Chinese competitors Hithium and REPT (Ruipu Lanjun) are following with their own 587Ah offerings, while EVE Energy is pushing toward an even larger 628Ah format. This article provides a comprehensive engineering and economic analysis of the 587Ah cell transition, its impact on BESS system costs, and the competitive dynamics reshaping the global storage cell market.

Overview of the 587Ah Transition and Intertek CEA's Cost Forecast

The transition from 280-314Ah cells — which have been the utility-scale BESS industry standard since approximately 2020-2022 — to 500+Ah cells represents the most significant cell format shift in the storage industry's history. The 280Ah LFP cell, popularized by CATL and widely adopted across the Chinese battery industry, established a standard around which module designs, rack configurations, thermal management systems, and container layouts were optimized. Its dimensions (approximately 207mm × 174mm × 72mm, sometimes referred to as the "71173" format) and weight (approximately 5.5 kg) became a de facto industry standard, with BMS electronics, busbar connections, and module enclosures all designed around this physical form factor. The 587Ah cell — CATL's next-generation format, sometimes referred to as a "super-sized" or "jumbo" cell — represents a roughly 2x increase in per-cell capacity while increasing physical dimensions and weight less than proportionally, achieving a modest (~20%) improvement in cell-level energy density (Wh/kg and Wh/L) but enabling transformative improvements at the module and system level.

The engineering logic behind the 587Ah transition is straightforward but non-obvious. A BESS module for utility-scale applications typically contains a fixed number of cells connected in series and/or parallel to achieve a target voltage and capacity. For a 280Ah cell module with 52 cells in a specific series-parallel configuration, the module might deliver 14.3 kWh of nameplate capacity (52 cells × 3.2V nominal × 280Ah / 1000). A 587Ah cell module with the same 52-cell configuration would deliver approximately 97.5 kWh — a 6.8x increase in module capacity with the same number of cells. In practice, module designers typically reduce cell count to keep module voltage and physical dimensions manageable, but the key ratio is that the module's energy capacity increases by approximately 60-80% for a module of comparable physical dimensions and cell count — because each cell carries 2.1x the energy (587/280) while the module's non-cell components (enclosure structure, busbars, BMS slave units, thermal interface materials, electrical insulation) scale sub-linearly with total energy capacity. This is the "modular density dividend" that Intertek CEA identifies as the primary cost-reduction mechanism, and it is far more significant than the 20% cell-level density improvement in isolation.

Why This Matters: The BoS Cost Lever and the Lithium Price Signal

Intertek CEA's analysis matters because it resolves an apparent contradiction in storage industry narratives: if lithium prices have tripled and lithium is essential for LFP batteries, how can BESS costs decline? The answer lies in the structural cost composition of a BESS system, which the report decomposes with analytical clarity. The total installed cost of a utility-scale BESS container (a standard 20-foot or 40-foot ISO container housing battery racks, PCS, thermal management, fire suppression, and controls) can be broken down into: battery cells (approximately 40-55% of container cost), balance-of-system components (approximately 30-40%, including module/rack enclosures, busbars and cabling, BMS electronics, thermal management, fire suppression, container structure, and assembly labor), power conversion system (approximately 10-15%, including the bidirectional inverter, transformer, and switchgear), and commissioning, transportation, and margin (approximately 5-10%). Lithium carbonate — the lithium-containing precursor material for LFP cathode production — accounts for approximately 10-12% of cell cost, which is 40-55% of container cost, which means lithium represents approximately 4-5% of container cost and approximately 2% of total installed system cost (including PCS, installation, and project development costs). A tripling of lithium prices therefore adds approximately 4-8% to total BESS system cost — significant but manageable, and potentially offset by BoS savings from the 587Ah transition.

The BoS savings from 587Ah cells are the real story. For a standard 20-foot container housing approximately 3-5 MWh of storage capacity with 280Ah cells, the transition to 587Ah cells — maintaining the same container footprint and cooling architecture — increases capacity to approximately 5-8 MWh, a 50-70% increase. The container structure, thermal management system (HVAC or liquid cooling), fire suppression system, and much of the BMS architecture are shared across the increased capacity — their costs do not scale proportionally with energy capacity. The per-MWh cost of these shared systems declines by approximately 30-40%, contributing 6-12% to total system cost reduction. Additionally, the reduction in total cell count per MWh — fewer cells for the same total energy capacity — reduces the number of busbar connections (lower electrical loss, fewer connection points for potential failure), BMS voltage/temperature sensing channels (lower BMS electronics cost per MWh), and module assembly labor (fewer modules to assemble). These "systems integration" savings compound with the direct BoS savings to produce the cost reduction trajectory that Intertek CEA projects for 2027. AGAIC POWER's next-generation storage platform leverages large-format cell architectures to deliver lower total cost of ownership through optimized BoS integration, reduced installation complexity, and enhanced energy density per footprint.

Technical Deep Dive: Cell Chemistry, Manufacturing Scale, and the Sulfur-Lithium Supply Chain

The engineering of the 587Ah LFP cell itself reflects the trade-offs inherent in scaling electrochemical energy storage devices. LFP (lithium iron phosphate, LiFePO₄) is an olivine-structured cathode material that offers: (1) excellent thermal stability — the strong P-O covalent bond in the phosphate group resists oxygen release at elevated temperatures, giving LFP a thermal runaway onset temperature approximately 50-80°C higher than NMC (nickel manganese cobalt) cathodes; (2) long cycle life — LFP's minimal structural volume change during lithium intercalation/deintercalation (approximately 6-7% versus approximately 10-12% for NMC) reduces mechanical stress on the cathode particles, enabling 4,000-8,000 cycles at 80% depth of discharge; (3) abundant, low-cost raw materials — iron and phosphate are among the most abundant and least expensive industrial materials, with no cobalt or nickel supply constraints; and (4) lower energy density — LFP's nominal voltage (3.2V) and specific capacity (approximately 160-170 mAh/g) produce cell-level energy density of approximately 140-180 Wh/kg, compared to 200-260 Wh/kg for NMC — a trade-off that is acceptable for stationary storage where weight and volume are less constraining than for EVs.

Scaling LFP cells from 280Ah to 587Ah involves more than simply making the cell physically larger. Key engineering challenges include: (1) current distribution — in a larger cell, the distance from the current collector tabs to the farthest points of the electrode increases, creating non-uniform current density that can lead to localized overcharging/undercharging, accelerated degradation, and potential lithium plating (metallic lithium deposition on the anode during charging, a primary cause of capacity loss and internal short circuits); CATL addresses this through multi-tab or "tabless" electrode designs that reduce current path length and improve distribution uniformity; (2) thermal management — a larger cell has a lower surface-area-to-volume ratio, making it harder to reject the heat generated during charge/discharge (primarily ohmic heating from internal resistance); CATL's 587Ah cell design incorporates optimized thermal pathways and is designed for liquid cooling integration that manages temperature gradients across the large cell volume; (3) mechanical integrity — a physically larger cell experiences greater mechanical stress from electrode expansion/contraction during cycling, requiring optimized cell casing design (typically aluminum prismatic with reinforced walls) and compression within the module to maintain stack pressure within the optimal range for LFP (typically 0.3-0.5 MPa); and (4) manufacturing yield — producing consistently high-quality cells at the 587Ah scale requires tighter process control in electrode coating (uniformity of cathode and anode slurry deposition), cell assembly (precise electrode stacking or winding alignment), and formation cycling (the initial charge-discharge cycles that form the solid electrolyte interphase layer). CATL's ability to achieve mass production at acceptable yields — demonstrated by its 2 GWh shipment in H2 2025 — validates that these engineering challenges have been resolved at manufacturing scale.

The lithium carbonate price tripling is itself an instructive supply chain case study. Lithium carbonate (Li₂CO₃) — the most common lithium precursor for LFP cathode production — experienced a price surge in late 2025 and early 2026 driven by two converging factors: (1) sulfur import disruptions affecting Chinese lithium brine and spodumene processing — sulfur is a critical reagent in the roasting and leaching processes that convert lithium-bearing minerals and brines into battery-grade lithium carbonate, and China imports approximately 60-70% of its sulfur from the Middle East and other regions, making the supply chain vulnerable to shipping disruptions, geopolitical events, and trade policy changes; and (2) cathode material shortages — the rapid expansion of LFP cathode production capacity in China has outpaced the supply of high-purity iron phosphate precursors and lithium carbonate, creating a demand-pull price increase that compounds the supply-push increase from sulfur disruptions. The tripling since mid-2025 represents a sharp increase from a relatively low base — lithium carbonate prices had fallen from their 2022 peak of approximately $80/kg to approximately $10-15/kg by mid-2025 due to oversupply from expanded Australian spodumene and Chinese lepidolite production — and the current price of approximately $30-45/kg, while high relative to the 2025 trough, is still well below the 2022 peak and is not considered structurally supply-constrained at the global level. The sulfur disruption is likely temporary (sulfur supply chains can be rerouted and processing alternatives developed), while the cathode material shortage reflects a capacity-matching issue that will resolve as precursor production scales to match cathode production — suggesting that the current lithium price increase is cyclical, not structural.

Real-World Applications: Container-Level Integration, Project Economics, and the Competitive Cell Landscape

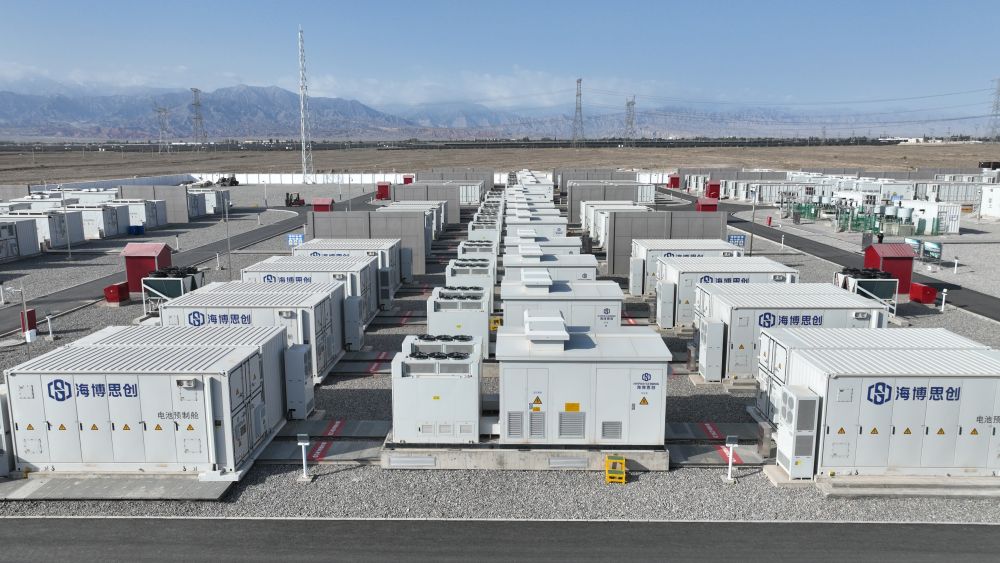

The transition to 587Ah cells is not merely a cell technology story — it has direct implications for how BESS containers are designed, manufactured, and deployed. With 280Ah cells, a standard 20-foot container (approximately 6m × 2.4m × 2.6m internal dimensions) typically achieves 3-4 MWh of capacity, requiring 5-8 containers for a typical 20MW/80MWh (4-hour) utility-scale project. With 587Ah cells, the same container can achieve 5-8 MWh — reducing the container count for the same project by 30-40%, which in turn reduces foundation/civil works costs (fewer concrete pads to pour), cabling and interconnection costs (fewer containers to wire together), land area (smaller project footprint), and commissioning complexity (fewer individual units to test and commission). For a 100MW/400MWh project, the reduction from 100-130 containers (with 280Ah cells) to 50-80 containers (with 587Ah cells) represents direct capital cost savings of $1-3 million — not transformative for a $100+ million project, but meaningful at the margin, and the indirect savings (faster construction, simpler O&M, reduced land requirements) may be as significant as the direct savings.

The competitive cell landscape is being reshaped by the 587Ah transition. CATL — the world's largest battery manufacturer with approximately 35-40% global market share (all chemistries, all applications) — established the 587Ah format as the next industry standard through its June 2025 mass production launch, leveraging its enormous R&D budget (estimated at over $2 billion annually), its manufacturing scale (over 300 GWh of annual LFP production capacity), and its customer relationships (it supplies cells to multiple BESS integrators, including its own system integration division and external customers). Hithium (Xiamen Hithium Energy Storage Technology) — a fast-growing Chinese storage-focused cell manufacturer that has emerged as one of CATL's most credible competitors — is following with its own 587Ah offering, leveraging its focus on large-format LFP cells (it skipped the 280Ah generation in favor of 300Ah+ formats) and its aggressive international expansion (manufacturing facilities planned in the US, Europe, and Southeast Asia). REPT (Ruipu Lanjun Energy) — backed by stainless steel giant Tsingshan Group, giving it unique vertical integration into nickel and lithium supply chains — is also pursuing 587Ah, while EVE Energy is taking a "leapfrog" strategy with its 628Ah format, betting that an even larger cell will capture incremental BoS savings beyond what 587Ah can deliver. The competitive dynamics mirror the semiconductor industry's "technology node" transitions: each new cell generation requires massive R&D and manufacturing investment, creating barriers to entry that favor the largest, deepest-pocketed players, while the generational improvements are substantial enough that falling behind on the technology curve is commercially fatal.

Industry Impact: Standardization, Interchangeability, and the Risk of Format Fragmentation

The 587Ah transition raises important questions about standardization and interchangeability in the BESS cell market. The 280Ah format became a de facto standard not through any formal standards process but through market dynamics: CATL's adoption of the format, followed by multiple competitors offering pin-compatible (same physical dimensions, same electrical characteristics) 280Ah cells, created a multi-supplier ecosystem where BESS integrators could qualify cells from multiple manufacturers and switch suppliers without redesigning their modules, racks, or containers. This standardization was commercially valuable for integrators (reducing supplier dependency and enabling competitive procurement) and for the market as a whole (reducing engineering costs and enabling faster project development).

The 587Ah transition risks fragmenting this standardization, at least in the short term. Unlike the 280Ah format — where physical dimensions and electrical specifications were broadly shared across manufacturers — the 587Ah format is entering the market with multiple, potentially incompatible implementations. CATL's 587Ah cell has specific dimensions, terminal locations, thermal interface requirements, and electrical characteristics that its module designs are optimized for. Hithium's 587Ah cell may have slightly different dimensions or terminal configurations. EVE's 628Ah cell is intentionally different, pursuing a "better than 587Ah" strategy rather than compatibility. This means that integrators who design their modules around CATL's 587Ah cells may not be able to easily substitute Hithium or EVE cells, and vice versa — recreating the supplier lock-in that the 280Ah standardization had reduced. The industry's resolution of this tension — between format innovation (larger cells, each manufacturer's unique optimization) and interchangeability (pin-compatible cells, multi-supplier qualification) — will have significant implications for supply chain resilience, competitive dynamics, and BESS cost trajectories through 2030.

Future Outlook: 628Ah, Sodium-Ion, and the Post-Lithium Cell Technology Roadmap

Looking forward, the 587Ah transition is likely an intermediate step — not the final destination — in the evolution of stationary storage cell technology. EVE Energy's 628Ah format represents the next increment in the "bigger is better" trajectory, and CATL has signaled its intention to develop 700Ah+ formats for the next generation. However, the physical and electrochemical limits of LFP cell scaling are approaching: as cells become larger, the current distribution, thermal management, and mechanical integrity challenges intensify, and the marginal BoS savings from each additional 50-100Ah of capacity diminish (the savings from reducing container count by 40% with 587Ah are substantial; the additional savings from reducing it by another 10% with 700Ah are more modest). The industry may be approaching a practical upper bound for LFP prismatic cell capacity in the 600-800Ah range, beyond which further size increases offer diminishing returns.

The longer-term technology roadmap — beyond LFP cell scaling — includes sodium-ion batteries as the most credible near-term alternative chemistry. Sodium-ion cells, using abundant sodium (Na) instead of lithium (Li) as the charge carrier, offer: (1) raw material cost reduction — sodium is approximately 30-50x cheaper than lithium on a per-kilogram basis (sodium carbonate ≈ $0.3/kg versus lithium carbonate ≈ $30-45/kg), and the cathode materials (layered transition metal oxides or Prussian blue analogues) can use iron and manganese instead of nickel and cobalt; (2) supply chain resilience — sodium is globally abundant (seawater, salt mines) with no geographic concentration risk; (3) lower energy density (120-160 Wh/kg, roughly 70-85% of LFP) — acceptable for stationary storage where weight and volume are less constraining; and (4) superior low-temperature performance — sodium-ion cells can operate at -20°C to -30°C with acceptable capacity retention, compared to 0°C to -10°C for LFP, making them attractive for cold-climate applications. CATL has begun commercial sodium-ion cell production, and the technology could capture 10-20% of the stationary storage market by 2030 if cost and cycle life targets are met. The interplay between LFP cell scaling (587Ah → 628Ah → 700+Ah) and sodium-ion commercialization will define the storage cell cost and technology landscape for the remainder of the decade, and Intertek CEA's 2027 BESS cost forecast represents an early signal that the industry is entering this next phase of competitive technology evolution.
