Overview of the Technology / News

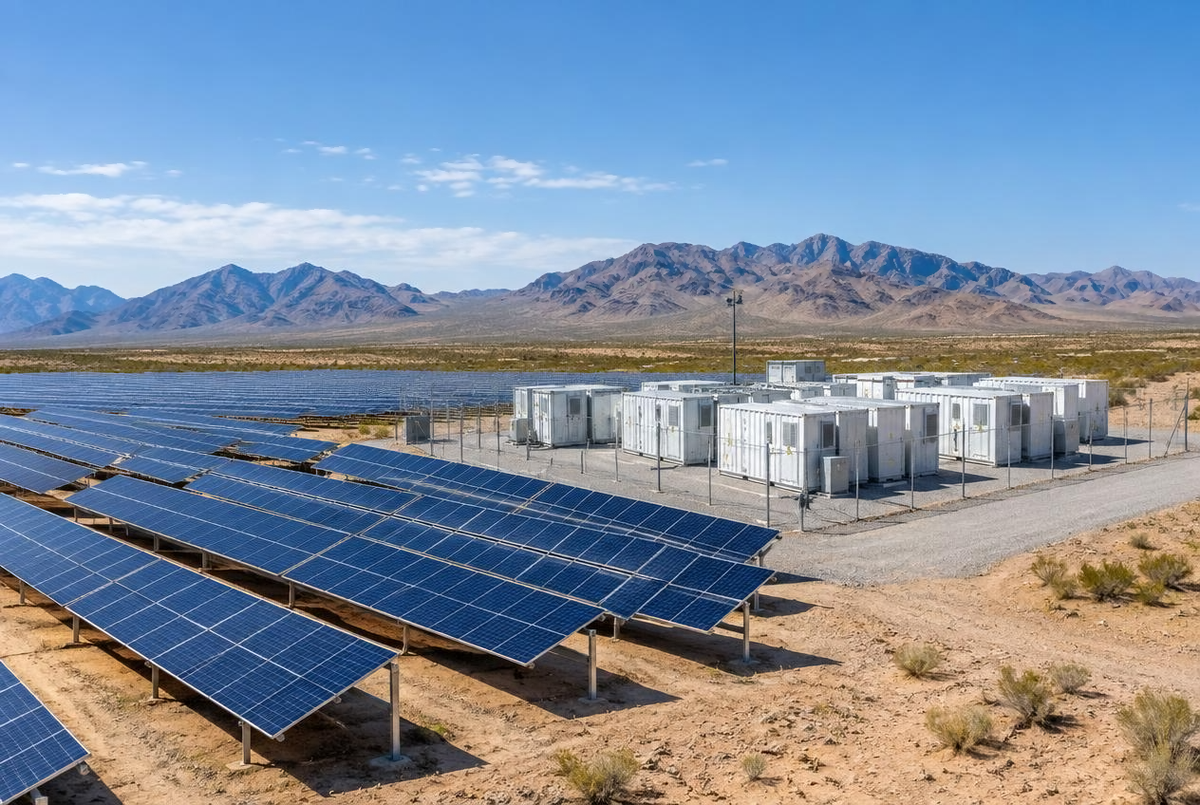

Chile's national electricity coordinator, together with ENGIE Chile and Huawei, has completed the country's first field test of grid-forming technology at the Los Loros BESS in the Atacama region — a 48 MW / 275.23 MWh system built from 63 LFP container units and backed by US$64 million of investment. During the test, Power Block 1 ran in grid-forming mode and helped form an intentional electrical island, holding stable voltage and frequency entirely on its own.
The trial feeds directly into Chile's rulemaking: the framework opened in October 2024, final requirements were published in April 2025, and this test provides the field evidence for formal grid-code validation before the system connects to the national grid (SEN). It is among the most advanced grid-forming demonstrations in Latin America.
Why This Development Matters
Chile's grid is one of the highest-renewable-share systems in the world, and the Atacama is its solar heartland. When inverter-based solar and wind supply most of the energy, the rotating mass that traditionally kept frequency stable disappears. Grid-forming batteries are the substitute for that missing inertia — and Chile is writing the playbook other high-renewable grids (South Australia, parts of California, Germany) will study.
For the storage industry, a successful field test converts grid-forming from a lab concept into an interconnection requirement, which reshapes how every future Chilean BESS must be specified.
Technical Deep Dive
A high voltage battery stack system is what makes a site like Los Loros possible. Each of the 63 containers holds LFP modules wired in series-parallel strings to reach a high DC bus voltage (often 1,000–1,500 V), fed into a PCS that converts to medium-voltage AC. Stacking many containers lets a single site reach 275 MWh while keeping each unit modular, cooled, and serviceable.
The grid-forming magic lives in the PCS control software. Instead of measuring the grid and following it, the inverter runs a virtual synchronous machine model that emulates a generator's inertia and damping. In the Los Loros islanding test, Power Block 1 became the reference source: it established terminal voltage and frequency, and the rest of the islanded section synchronized to it. That requires precise droop control — frequency falls slightly as load rises, just like a real turbine governor — and fast current limiting so a fault does not destroy the semiconductors.
Crucially, the BMS across all 63 containers must agree on state of charge and power capability so the PCS can dispatch the whole stack as one coherent source. This is the same challenge a smaller <a href="https://agaicpower.com/collections/energy-storage">high voltage battery stack system</a> faces in a C&I building, just multiplied across acres of containers and tightened for grid-code certification.
Real-world Applications
- High-renewable grids that have lost synchronous inertia and need synthetic stability without building gas plants.
- Remote mining and industrial loads in the Atacama that can island from SEN during disturbances and keep running.
- Black-start reserves — a grid-forming BESS can re-energize a dead section, a service Chile's coordinator will increasingly value.
- Renewable firming — pairing the storage with the region's massive solar to deliver dispatchable, inertia-backed power.
Industry Impact / Market Implications
The test gives Chilean regulators real data to finalize grid-forming requirements, which in turn de-risks the next wave of BESS procurement. ENGIE and Huawei are signaling that turnkey grid-forming is deployable today, not a research project — a message aimed at every developer planning SEN-connected storage.
Benchmark Mineral Intelligence and BloombergNEF note that Latin America's storage market has been held back less by technology than by unclear grid codes; Chile's validation removes that blocker for the region. Expect similar frameworks to accelerate in Colombia, Brazil, and Peru, where renewable shares are climbing just as fast.
For equipment buyers, the lesson is that grid-forming is becoming table stakes for utility-scale storage. A high-voltage stack without it may still charge and discharge, but it will not pass interconnection in markets that follow Chile's lead.
Future Outlook
Within two to five years, grid-forming will likely move from "pilot" to "standard" across high-renewable grids, with Chile's SEN requirements cited as a reference. We will see inverter makers bake synthetic inertia, black start, and islanding into default firmware, and utilities contract specifically for "inertia equivalency" in megawatt-seconds.
The Atacama test is also a preview of storage-as-grid-foundation: not backup behind the grid, but the element that lets the grid exist at all. As more regions hit Chile's renewable penetration, the high-voltage LFP stack that proved itself in the desert becomes the template for keeping the lights on everywhere.
