EnerVenue Nickel-Hydrogen 150kWh Energy Rack 30,000-Cycle Battery Analysis — Non-Lithium LDES Technology Future Explained 2026
Overview: Nickel-Hydrogen Chemistry Comes Down to Earth

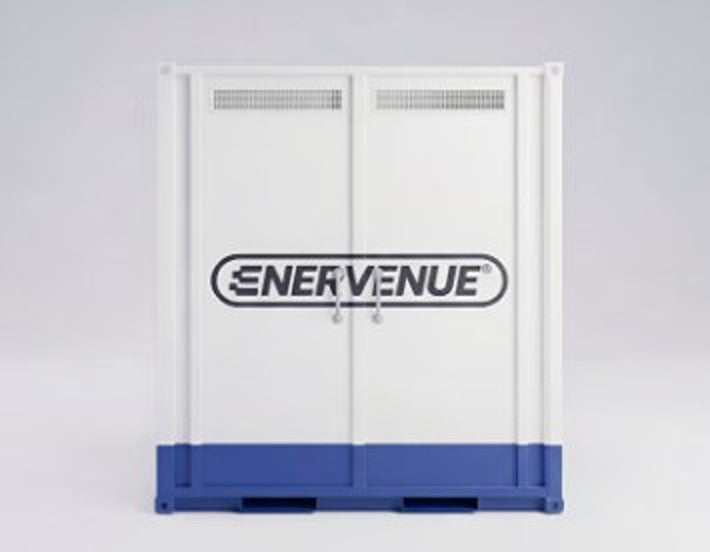

On July 23, 2026, California-based EnerVenue launched the Energy Rack — a 150 kWh DC plug-and-play storage module that brings nickel-hydrogen battery chemistry, proven through over four decades of space applications powering satellites, the Hubble Space Telescope, and the International Space Station, to terrestrial utility-scale energy storage. The technology, which EnerVenue calls Aqueous Metal Battery (AMC), is fundamentally different from lithium-ion in ways that directly address the three pain points that constrain lithium-ion's suitability for long-duration, high-cycle applications: cycle life (30,000 cycles versus 6,000-10,000 for best-in-class LFP), fire safety (aqueous electrolyte vents steam through pressure relief valves rather than propagating exothermic thermal runaway), and supply chain resilience (no lithium, cobalt, nickel in the electrochemically active sense, or rare earth elements — the primary materials are nickel, hydrogen, potassium hydroxide electrolyte, and steel pressure vessels).
The Energy Rack specifications reveal a product optimized for operational extremes and longevity rather than energy density: 150 kWh capacity in a rack-mountable form factor, 10C maximum charge/discharge rate (enabling 1.5 MW of power from a single rack for short-duration bursts), an operating temperature range of -10C to 45C without active thermal management (the aqueous electrolyte is naturally freeze-resistant to approximately -20C when charged), rack-level round-trip efficiency of at least 85% (lower than lithium-ion's 90-95% but acceptable given the use case), and full certification to UL 9540 (energy storage system safety), UL 9540A (thermal runaway fire propagation test), and IEC 62933 (international standard for electrical energy storage systems). The product is clearly targeting utility-scale customers — particularly those in fire-risk-prone regions such as California, Australia, and Southern Europe — for whom the elimination of thermal runaway risk is a permitting and insurance prerequisite that can offset the efficiency penalty relative to lithium-ion.
Why Nickel-Hydrogen Matters for the Non-Lithium LDES Technology Race
The EnerVenue Energy Rack arrives at a moment when the non-lithium long-duration energy storage technology landscape is more crowded — and more consequential — than at any point in the industry's history. The global LDES market is projected by BloombergNEF to require approximately US$1.5-3 trillion in cumulative investment by 2040 to support power systems with high renewable penetration, and no single technology is likely to dominate all LDES applications. Lithium-ion's cost and performance advantages at 1-4 hour durations are well-established, but for applications requiring 8-100+ hours of storage, daily cycling for decades, or deployment in extreme environments (high temperature, high fire risk, remote locations with limited maintenance access), alternative chemistries and storage mechanisms become increasingly attractive — and, in some applications, essential.
Nickel-hydrogen occupies a distinct position in the non-lithium LDES landscape. Unlike iron-air batteries (Form Energy), which are optimized for 100+ hour durations with very low power-to-energy ratios, nickel-hydrogen's 10C discharge capability makes it suitable for both long-duration energy shifting (at lower C-rates) and high-power grid services (at higher C-rates) — a flexibility that lithium-ion currently dominates. Unlike vanadium redox flow batteries, which separate power (cell stack) and energy (electrolyte tanks) and offer similar cycle life advantages, nickel-hydrogen is a self-contained sealed system that does not require pumps, tanks, or electrolyte management infrastructure — simplifying system design and reducing balance-of-plant cost. And unlike compressed air or liquid air energy storage, which require specific geological formations (salt caverns, depleted gas fields) or large-scale cryogenic equipment, nickel-hydrogen is site-agnostic, deployable on any flat, graded surface with a concrete pad and a grid interconnection — the same deployment model as lithium-ion BESS containers.
The technology's NASA heritage provides both a technical credibility advantage and a commercialization challenge. The engineering challenge that EnerVenue has addressed — and which prevented nickel-hydrogen from being commercialized for terrestrial applications for decades — is cost reduction. Space-grade nickel-hydrogen batteries, manufactured in low volumes for multi-hundred-million-dollar satellites, cost thousands of dollars per kilowatt-hour. EnerVenue's innovation is not in electrochemistry but in manufacturing: redesigning the cell and stack architecture for automated, high-volume production using commodity materials (nickel, steel, potassium hydroxide) and processes adapted from the automotive and industrial equipment industries. The company has not disclosed its current manufacturing cost, but industry estimates suggest a target of US$150-200/kWh at scale for the Energy Rack — competitive with lithium-ion at the system level when cycle life and replacement costs are factored into the levelized cost of storage calculation.
Technical Deep Dive: Nickel-Hydrogen Electrochemistry and the 30,000-Cycle Mechanism
Nickel-hydrogen battery electrochemistry is elegantly simple compared to lithium-ion — a characteristic that directly explains the cycle life advantage. The cell consists of a nickel hydroxide positive electrode (cathode during discharge), a hydrogen negative electrode (anode during discharge) catalyzed by platinum or platinum-alloy particles on a porous carbon substrate, and an aqueous potassium hydroxide (KOH) electrolyte — typically 26-31% concentration — contained within a cylindrical steel pressure vessel (the "pressure vessel" design that gives nickel-hydrogen cells their distinctive appearance).
During charging, the reactions proceed as follows. At the positive electrode, nickel hydroxide is oxidized to nickel oxyhydroxide: Ni(OH)2 + OH- -> NiOOH + H2O + e-. At the negative electrode, water is reduced to produce hydrogen gas and hydroxide ions: 2H2O + 2e- -> H2 + 2OH-. The overall charge reaction consumes water and nickel hydroxide to produce nickel oxyhydroxide and hydrogen gas, which is stored under pressure within the sealed vessel — typically 30-80 bar (3-8 MPa) depending on state of charge. During discharge, the reactions reverse: hydrogen is oxidized at the negative electrode (H2 + 2OH- -> 2H2O + 2e-), and nickel oxyhydroxide is reduced at the positive electrode (NiOOH + H2O + e- -> Ni(OH)2 + OH-), regenerating the original materials. The net reaction involves only the movement of hydrogen between the gas phase and the solid nickel electrode, with the aqueous KOH electrolyte serving as the ionic conductor but not being consumed — a critical feature that eliminates the electrolyte degradation mechanisms that limit lithium-ion cycle life.
The 30,000-cycle lifespan derives from the fundamental stability of this chemistry. Unlike lithium-ion, where lithium ions must repeatedly intercalate into and de-intercalate from solid electrode crystal structures — causing mechanical stress, particle cracking, and gradual capacity fade — the nickel-hydrogen reactions occur primarily at the electrode surface and in the gas phase, with minimal structural disruption to the solid electrodes. The nickel hydroxide/nickel oxyhydroxide redox couple is extremely stable and well-understood (it is the same chemistry used in nickel-cadmium and nickel-metal hydride batteries, which also demonstrate long cycle lives), and the hydrogen electrode — catalyzed by platinum particles that are highly resistant to poisoning and degradation in the alkaline environment — maintains its activity over tens of thousands of cycles. The primary degradation mechanisms are: (1) gradual coarsening of the nickel hydroxide particles (Ostwald ripening), which reduces active surface area and increases internal resistance over very long timeframes (typically noticeable only after 20,000+ cycles), (2) platinum catalyst sintering or dissolution at the hydrogen electrode (minimized by the relatively low operating temperatures and the alkaline environment, which is less aggressive to platinum than acidic environments), and (3) pressure vessel fatigue from repeated pressurization-depressurization cycles (addressed through conservative vessel design with safety factors typical of aerospace pressure vessel engineering). None of these mechanisms produces the kind of sudden, catastrophic failure that lithium-ion's thermal runaway represents.
The safety characteristics are intrinsic to the chemistry rather than dependent on external protection systems. During extreme abuse conditions — external fire, overcharge, physical puncture — the cell's internal pressure rises as hydrogen generation exceeds recombination, and the pressure relief valve opens to vent pure hydrogen gas. Hydrogen vented to atmosphere rises and disperses rapidly (it is 14 times lighter than air) and, unless it encounters an ignition source within its narrow flammability range (4-75% concentration in air), dissipates harmlessly. There is no liquid electrolyte leakage, no toxic gas generation, and no exothermic chemical reaction that can propagate to adjacent cells — the failure mode is a controlled, non-propagating venting that does not endanger surrounding cells or equipment. This is fundamentally different from lithium-ion, where a single cell's thermal runaway can cascade to destroy an entire containerized BESS system, as has been documented in multiple grid-scale BESS fires globally. For applications in wildfire-prone regions (California, Australia, Mediterranean Europe) or urban environments where fire risk is a permitting and community acceptance barrier, this intrinsic safety is arguably the Energy Rack's most valuable attribute — more important than cycle life or cost, because without it, the project may not be permitable at all.
Real-World Applications: Where Nickel-Hydrogen Beats Lithium-Ion on Total Cost
The nickel-hydrogen value proposition is strongest in applications that combine three characteristics: high daily cycling (2-3+ full cycles per day), extreme environments (high ambient temperature, high fire risk, remote location with limited maintenance access), and long asset life requirements (20-30 years). In these applications, the levelized cost of storage (LCOS) comparison favors nickel-hydrogen despite its higher upfront capital cost per kilowatt-hour, because the capital cost is amortized over 3-5 times more cycles than lithium-ion and the system requires zero replacement during its 30-year life.
Consider a utility-scale BESS serving a solar time-shifting application: charging from midday solar generation and discharging to meet evening peak demand, one full cycle per day. A lithium-ion system rated for 6,000 cycles to 80% capacity retention would reach end-of-life in approximately 16 years, requiring a complete system replacement for the remaining 14 years of a 30-year project life. The nickel-hydrogen system, rated for 30,000 cycles, would achieve 82 years of equivalent daily cycling — well beyond the project's 30-year life — with essentially zero degradation-related capacity loss. When the replacement cost of the lithium-ion system at year 16 is factored into the LCOS, the nickel-hydrogen system's higher upfront cost (estimated US$150-200/kWh versus US$120-150/kWh for lithium-ion at current prices) is more than offset by the avoidance of mid-life replacement, resulting in a lower LCOS over the 30-year project life. BloombergNEF's levelized cost of storage model supports this conclusion: for a 100 MW / 400 MWh 4-hour system cycling daily for 30 years, the model estimates an LCOS of approximately US$120-140/MWh for lithium-ion (including one replacement at year 15) versus US$100-120/MWh for nickel-hydrogen (no replacement required).
The 10C discharge capability adds a revenue dimension that pure LDES technologies cannot match. A nickel-hydrogen system can earn revenue from both long-duration energy shifting (discharging over 4-8 hours for energy arbitrage) and short-duration high-power grid services (discharging at 3-10C for frequency regulation and synthetic inertia) — a revenue stacking capability that, in markets with deep ancillary services markets such as ERCOT, PJM, and the UK, can substantially improve project economics relative to technologies optimized for only one service. Lithium-ion also offers this flexibility, but with a shorter asset life; flow batteries offer long life but with limited power capability (VRFB stacks are typically designed for 1-2C maximum discharge). Nickel-hydrogen uniquely combines long cycle life with high power density, enabling a revenue stacking strategy that maximizes asset utilization across multiple grid service markets over a 30-year operating life.
Industry Impact: The Non-Lithium LDES Competitive Landscape and Technology Differentiation
EnerVenue's Energy Rack enters a non-lithium LDES market that is simultaneously more promising and more competitive than ever. Multiple technology companies have achieved commercial-scale deployments or secured significant project pipelines, creating a landscape in which technology differentiation — not just cost — will determine market share. The primary competitors in this landscape include: Form Energy (iron-air batteries, 100+ hour duration, targeting seasonal storage and multi-day reliability, with a manufacturing facility in West Virginia and utility contracts with Xcel Energy, Georgia Power, and Great River Energy); ESS Inc. (iron flow batteries, 4-12 hour duration, using iron, salt, and water electrolyte, with deployments at US military bases and commercial and industrial sites); Energy Dome (CO2-based long-duration storage using a closed thermodynamic cycle, with a 20 MW / 200 MWh commercial demonstration plant in Sardinia, Italy); and Hydrostor (advanced compressed air energy storage using purpose-built underground caverns, with projects in development in California and Australia). Each of these technologies occupies a different position on the duration-versus-power-density spectrum, and each faces distinct commercialization challenges.
Nickel-hydrogen's competitive differentiation centers on three attributes that none of its competitors fully matches: (1) site-agnostic deployment (unlike compressed air or pumped hydro, which require specific geology) combined with containerized, modular architecture (like lithium-ion BESS); (2) extreme cycle life with high power capability (unlike iron-air, which is optimized for long duration but low power density, or flow batteries, which offer long life but moderate power); and (3) intrinsic safety with no fire risk (unlike lithium-ion, which requires fire suppression systems that add cost and complexity). The primary disadvantages — lower round-trip efficiency (85% versus 90-95% for lithium-ion) and lower energy density (the 150 kWh Energy Rack occupies approximately the same volume as a 300-400 kWh lithium-ion rack) — matter less for the utility-scale, ground-mounted applications that EnerVenue is targeting, where space is abundant and the cost of lost efficiency is offset by cycle life and safety advantages.
The supply chain dimension of nickel-hydrogen is an underappreciated strategic advantage. Lithium-ion supply chains are dominated by China (which controls approximately 60-70% of global lithium refining, 80%+ of graphite anode production, and 70%+ of cathode active material manufacturing), creating geopolitical supply risk that has prompted the US, EU, and other jurisdictions to implement policies aimed at diversifying battery supply chains. Nickel-hydrogen uses no lithium, cobalt, graphite, or rare earth elements — just nickel (abundantly mined and refined in multiple jurisdictions including Canada, Australia, Indonesia, and Russia), hydrogen (produced on-site from water electrolysis), potassium hydroxide (a commodity industrial chemical), and steel. This supply chain simplicity insulates nickel-hydrogen from the geopolitical and price volatility risks that affect lithium-ion, and it aligns with the policy objectives of countries seeking to reduce battery supply chain dependence on China. For utility and government buyers — particularly the US Department of Defense, which has expressed interest in non-lithium storage for military base resilience — supply chain independence can be a decisive procurement criterion that outweighs modest efficiency or cost differences.
Future Outlook: The Path to Terrestrial Nickel-Hydrogen at Scale
EnerVenue's commercialization trajectory will determine whether nickel-hydrogen transitions from an aerospace niche to a mainstream grid-scale storage technology. The company has raised approximately US$500 million in venture capital and strategic investment (from investors including Schlumberger New Energy, Saudi Aramco Energy Ventures, and IDC Ventures) and has announced plans for a manufacturing facility with an annual production capacity of approximately 1 GWh by 2027. Achieving that capacity at the cost targets implied by the Energy Rack's pricing — US$150-200/kWh at scale — requires solving manufacturing challenges that are fundamentally different from the electrochemistry challenges the company has already addressed: designing automated production lines for pressure vessels and electrode stacks that can achieve automotive-industry levels of quality and throughput, establishing supplier relationships for the specialty materials (particularly the platinum-group metal catalysts, which, while used in very small quantities per cell, represent a significant cost item that would need to be reduced through thrifting or recycling), and building the field service and warranty infrastructure to support 30-year product warranties in multiple geographies.
The most likely near-term deployment pathway for nickel-hydrogen is in applications where fire safety is the binding constraint — replacing diesel generators for backup power at critical infrastructure (hospitals, data centers, military bases), providing storage for remote communities and island grids where fire risk from lithium-ion is unacceptable (Hawaii, Alaska, Caribbean islands), and serving as the storage component of microgrids in wildfire-prone regions of California, Australia, and the Mediterranean. In these applications, the willingness to pay a premium for fire safety creates a market entry point that can fund the manufacturing scale-up and cost reduction necessary to compete in broader, more price-sensitive markets. As manufacturing costs decline toward the US$100-150/kWh range, nickel-hydrogen becomes competitive with lithium-ion for mainstream utility-scale applications — at which point the technology's cycle life and safety advantages could enable it to capture a meaningful share of the global BESS market, particularly in the 4-12 hour duration segment where lithium-ion's replacement cost and degradation disadvantages are most pronounced.
For the global energy storage industry, EnerVenue's Energy Rack is a welcome addition to the non-lithium LDES technology portfolio — one more option for project developers, utilities, and system planners seeking to diversify beyond lithium-ion for applications where lithium-ion's limitations (cycle life, fire safety, supply chain concentration) create genuine project risk. The technology's successful commercialization would not displace lithium-ion from its dominant position in the 1-4 hour storage segment — that battle is already won — but it could capture a meaningful share of the 4-12 hour LDES market and, in doing so, accelerate the deployment of the long-duration storage capacity that power systems with 70%+ renewable penetration will require to maintain reliability. The nickel-hydrogen battery, born in space and now coming to earth, may prove to be one of the more consequential technology transfers in the history of the energy transition.
