On July 31, 2026, Portuguese energy utility EDP announced the completion and commissioning of the battery energy storage component at its Las Lomillas hybrid renewable project in Cuenca, Spain, creating one of Europe's most technically sophisticated wind-solar-storage co-located facilities. The project integrates a 49.5 MW wind farm, a 36 MW solar PV plant (commissioned in 2025), and a newly operational 36 MW/72 MWh battery storage system — comprising 24 containerized 1.5 MW units — behind a single 122 MW grid interconnection point that was originally designed for approximately 50 MW of output. This configuration achieves a capacity-to-interconnection ratio of roughly 2.4:1 (122 MW of total generating and storage capacity sharing a 50 MW-equivalent connection), effectively more than doubling the utilization of the grid infrastructure asset. The project received EUR 620,000 in co-funding from Spain's Institute for Energy Diversification and Saving (IDAE) under the EU NextGenerationEU recovery program, and marks a milestone in EDP's Iberian hybrid renewable portfolio, which now exceeds 1 GW across Spain and Portugal. For system integrators evaluating hybrid inverter vs on-grid inverter — where the Las Lomillas architecture provides a real-world reference for how hybrid controllers coordinate AC-coupled wind, solar, and storage assets — this project demonstrates that grid connection optimization through hybridization is no longer a theoretical concept but a commercially deployed, utility-proven strategy.
Overview of the Technology / News
The Las Lomillas project is located in the province of Cuenca, in Spain's Castilla-La Mancha region — an area characterized by strong wind resources (average wind speeds of 6.5-7.5 m/s at 100m hub height) and high solar irradiation (1,800-2,000 kWh/m2/year), making it one of Europe's most favorable locations for hybrid renewable deployment. The wind farm (49.5 MW) was the first component to be built, followed by the solar plant (36 MW DC) commissioned in 2025, and finally the BESS (36 MW/72 MWh) commissioned in July 2026. All three generation and storage assets share a single 122 MW grid connection point — a configuration that would be impossible without storage: wind and solar have complementary but not perfectly offsetting generation profiles, meaning that without the BESS to absorb excess generation during coincident high-wind/high-solar periods, the combined output would frequently exceed the connection capacity, forcing curtailment.

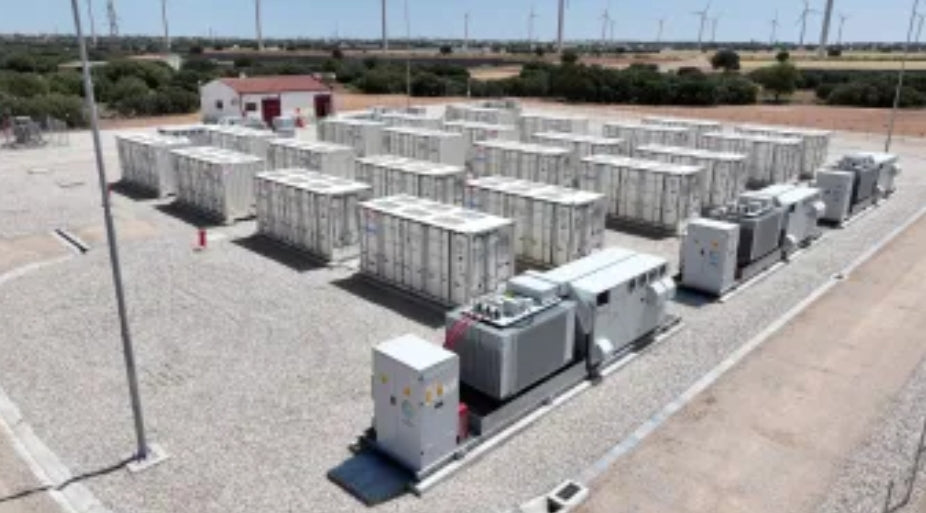

The BESS comprises 24 containerized 1.5 MW units — likely using LFP chemistry given the 2-hour duration (72 MWh / 36 MW = 2.0 hours) and the outdoor containerized form factor — connected at medium voltage (typically 20-30 kV in Spanish distribution networks) and aggregated to a single point of control within EDP's Energy Management and Control Center (CENG). The CENG orchestrates all three assets in real time, executing a multi-objective optimization that balances grid code compliance (voltage, frequency, reactive power), market participation (day-ahead, intraday, and ancillary services in the OMIE and MIBEL markets), and asset longevity (cycling minimization, thermal management). The total installed hybrid capacity at Las Lomillas — 49.5 MW wind + 36 MW solar + 36 MW BESS (charge) = 121.5 MW — approaches the 122 MW connection limit, meaning the CENG must maintain sub-second coordination to prevent any combination of charging, discharging, and generation from exceeding the connection thermal rating. For engineers assessing energy storage inverter compatibility — where the hybrid inverter must communicate bidirectionally with multiple DC and AC sources — the Las Lomillas architecture illustrates why utility-scale hybrid projects typically prefer AC-coupled topologies: each asset maintains its own inverter and protection system, connecting to a common medium-voltage bus, with the coordinating intelligence residing in the plant-level controller rather than a single multi-port inverter.
Why This Development Matters
- Grid Connection Is the Binding Constraint on Renewable Deployment: Across Europe, interconnection queues exceed 500 GW of capacity seeking connection, with average wait times of 3-7 years depending on the country and voltage level. In Spain, Red Electrica de Espana (REE) reports over 100 GW of renewable projects in the connection queue against a system peak demand of approximately 45 GW. The Las Lomillas approach — co-locating multiple technologies behind a single connection — effectively "creates" interconnection capacity without building new transmission lines, a strategy that REE and other European TSOs are increasingly encouraging through hybrid-specific connection agreements and accelerated study processes.
- Hybridization Improves Capacity Factors and Revenue Certainty: Standalone wind farms in Cuenca typically achieve 25-30% capacity factors; standalone solar achieves 18-22%. By combining wind (strongest in winter and at night), solar (strongest in summer and midday), and storage (time-shifting generation to higher-value hours), the Las Lomillas hybrid plant achieves a net capacity factor estimated at 40-50% for firm deliverable power, significantly improving the project's capacity credit in Spain's capacity market and its competitiveness in corporate PPA negotiations.
- NextGenerationEU Funding Validates the Hybrid Model: The EUR 620,000 IDAE grant — while modest relative to the project's total capital cost (estimated at EUR 65-85 million) — carries symbolic weight as an explicit EU policy endorsement of the wind-solar-storage hybridization strategy. The NextGenerationEU program has allocated EUR 6.9 billion to Spain's renewable energy and storage deployment, and Las Lomillas provides a demonstrated template for how these funds can be deployed to maximize grid infrastructure utilization.
Technical Deep Dive — Grid Connection Optimization Through Hybridization
The central engineering innovation at Las Lomillas is the "overplanting" of generation capacity relative to grid connection capacity — often called a high DC/AC ratio or "inverter loading ratio" in solar, but extended here to a multi-technology plant-level optimization. The concept is economically intuitive: grid interconnection infrastructure — substations, transformers, switchgear, protection systems, and transmission line capacity rights — represents 8-15% of total project capital cost and is a sunk cost once built. Maximizing the energy throughput across that fixed-cost infrastructure directly improves project returns, provided the incremental generation does not trigger curtailment.
At Las Lomillas, the plant controller achieves this optimization through a hierarchical dispatch logic. At the top level, the controller receives day-ahead market prices (from OMIE), intraday price updates, ancillary service requirements (from REE), and weather forecasts (wind speed, solar irradiance, ambient temperature). It then generates a 24-hour rolling optimization that determines: the optimal wind and solar curtailment schedule (when combined output would exceed the 122 MW connection limit), the BESS charge/discharge schedule (charging during low-price/high-generation periods, discharging during high-price/low-generation periods), and the ancillary service capacity to reserve (primarily secondary regulation band in the Spanish market). At the middle level, the controller translates this into individual asset setpoints — wind turbine pitch angle and power reference, solar inverter active and reactive power setpoints, and BESS power conversion system (PCS) charge/discharge commands — with update rates of 1-5 seconds. At the bottom level, each asset's local controller executes these commands within its own operational constraints (ramp rates, voltage limits, thermal limits) and reports status back to the plant controller.
The key performance metric is "grid connection utilization" — the ratio of actual energy delivered through the connection point to the theoretical maximum if the connection operated at rated capacity 24/7. A standalone wind farm typically achieves 25-30% utilization; a standalone solar farm achieves 18-22%. Las Lomillas is projected to achieve 55-65% utilization, more than doubling the infrastructure efficiency. This is achieved not just through resource complementarity (wind at night, solar during day) but through active curtailment management: when wind and solar generation would collectively exceed 122 MW plus BESS charging capacity, the controller curtails the asset with the lowest marginal cost (typically solar, since wind curtailment may involve mechanical stress) or charges the BESS if market prices justify storing rather than curtailing. For anyone evaluating solar inverter efficiency comparison — where European efficiency requirements under EU Regulation 2019/1783 set minimum efficiency thresholds of 96-98% for grid-connected inverters — the Las Lomillas architecture demonstrates that project-level optimization (matching generation profiles to grid capacity) can deliver far greater value than incremental improvements in individual inverter efficiency. A 1% improvement in inverter efficiency saves approximately 0.5% of project energy; a 2x improvement in grid connection utilization doubles project revenue for the same infrastructure cost.
Real-world Applications
The Las Lomillas hybrid model is directly applicable to three categories of projects across global markets. First, repowering of aging wind farms: Europe has approximately 30 GW of onshore wind capacity that will reach 20-25 years of operational life by 2030, many of which occupy sites with excellent wind resources and existing grid connections that are underutilized relative to modern turbine ratings. Adding solar and storage to these sites — using the existing connection infrastructure — could add 15-25 GW of incremental renewable capacity without requiring new transmission. Second, markets with severe grid connection bottlenecks: Chile (where the SING-SIC interconnection remains capacity-constrained), South Africa (where Eskom's transmission constraints have created a 5+ GW renewable connection backlog), and India (where inter-state transmission corridors for renewable-rich states like Rajasthan and Gujarat are saturated) could all benefit from the hybridization approach pioneered at Las Lomillas.
Third, and perhaps most significantly, the Las Lomillas architecture provides a deployment pathway for data center and industrial microgrids where grid connection lead times of 3-7 years are incompatible with 18-24 month construction schedules. By co-locating generation and storage behind a single connection — and sizing the connection for average rather than peak load — industrial consumers can achieve both schedule acceleration (avoiding grid upgrade delays) and cost optimization (avoiding peak demand charges). This is essentially the same logic that drives projects like Veolia's 350 MW AI data center microgrid in Ohio, but implemented with renewable generation rather than gas engines. For those selecting off-grid inverter sizing guide — where accurate load profiling and generation resource assessment are the foundation of correct system sizing — the Las Lomillas methodology of first establishing the grid connection constraint, then overplanting generation and adding storage to maximize utilization within that constraint, inverts the traditional sizing sequence and is arguably the more economically rational approach in grid-constrained markets.
Industry Impact / Market Implications
EDP's achievement at Las Lomillas has implications that extend well beyond the project itself. EDP is one of Europe's largest renewable energy operators, with 16 GW of installed renewable capacity globally and a stated target of 25 GW by 2028. The company has publicly committed to hybridizing a significant portion of its existing wind and solar portfolio where grid connection conditions permit, and Las Lomillas serves as the operational proof-of-concept that EDP's engineering, procurement, and operations teams can execute hybrid projects at scale. Other major European utilities — Iberdrola, Enel, Orsted, and RWE — are pursuing similar hybridization strategies, creating a potential market for 20-30 GW of storage co-located with existing renewable assets across Europe by 2030.
The supply chain implications are focused on two equipment categories. First, plant-level controllers capable of multi-asset, multi-objective optimization — a category currently dominated by specialized providers including Emerson/Zedi, ABB, and Siemens Energy, but increasingly challenged by independent software platforms like Arena, AlsoEnergy, and KWh Analytics that offer cloud-based hybrid plant management with lower upfront costs and faster deployment. Second, medium-voltage power conversion systems (PCS) that can interface bidirectionally with both DC battery systems and the AC collection grid — a technology segment where suppliers including SMA, Ingeteam, and Power Electronics are competing on efficiency (98.5-99.0% at rated power), power density (kW/m3 of containerized footprint), and grid-forming capability (synthetic inertia, black-start). For those comparing best solar inverter brands 2026 — where brands like SMA (Germany), Ingeteam (Spain), and Power Electronics (Spain) have established European manufacturing bases that provide advantages in logistics, service response time, and compliance with EU grid code requirements — the EDP project reinforces the trend toward regional supply chains where proximity and service quality increasingly outweigh pure cost considerations in utility-scale procurement decisions.
Future Outlook
The trajectory of hybrid renewable projects in Europe will be shaped by three regulatory and market developments over 2026-2028. First, the European Commission's ongoing revision of the Trans-European Networks for Energy (TEN-E) regulation is expected to explicitly recognize hybrid renewable-storage projects as eligible for Projects of Common Interest (PCI) status, which would fast-track permitting and unlock Connecting Europe Facility (CEF) co-financing for cross-border hybrid projects. Second, Spain's upcoming capacity market design — expected to be notified to the European Commission in Q4 2026 — will determine how hybrid projects are valued for capacity remuneration: a methodology that appropriately credits the firm capacity contribution of storage-co-located renewables could dramatically improve project economics versus a methodology that discounts hybrid capacity to the lower of wind or solar standalone capacity credits.
Third, and perhaps most transformative, the concept of "grid connection as a service" is gaining traction among European TSOs and regulators. Under this model, rather than each project developer negotiating a bespoke connection agreement, the TSO pre-defines connection capacity at optimal nodes and auctions it to the highest-value hybrid project configuration — essentially creating a market for interconnection capacity that rewards projects that maximize throughput per MW of connection. If adopted by REE and emulated by other European TSOs, this model could fundamentally change renewable project development economics, shifting competitive advantage from those who can acquire land and permits fastest to those who can design the most efficient hybrid configuration for a given grid connection point. EDP, with its demonstrated capability at Las Lomillas and growing 1 GW+ Iberian hybrid portfolio, is well-positioned to lead this transition — but the real winners will be the European electricity consumers who benefit from more renewable energy delivered through the same transmission infrastructure they have already paid for.
