Sodium-Ion Batteries Enter Your Home: Biwatt PowerNest R5's NFPP Chemistry and Wire-Free Architecture Explained — Guide
Chinese energy storage manufacturer Biwatt has launched the PowerNest R5 Series — a modular sodium-ion residential storage system that marks a significant milestone in the technology's journey from laboratory curiosity to consumer product. Built on sodium iron pyrophosphate (NFPP) cathode chemistry, the PowerNest R5 brings sodium-ion's inherent advantages — abundant raw materials, wide temperature tolerance, and inherent safety — directly to homeowners.
Overview of the PowerNest R5 Series

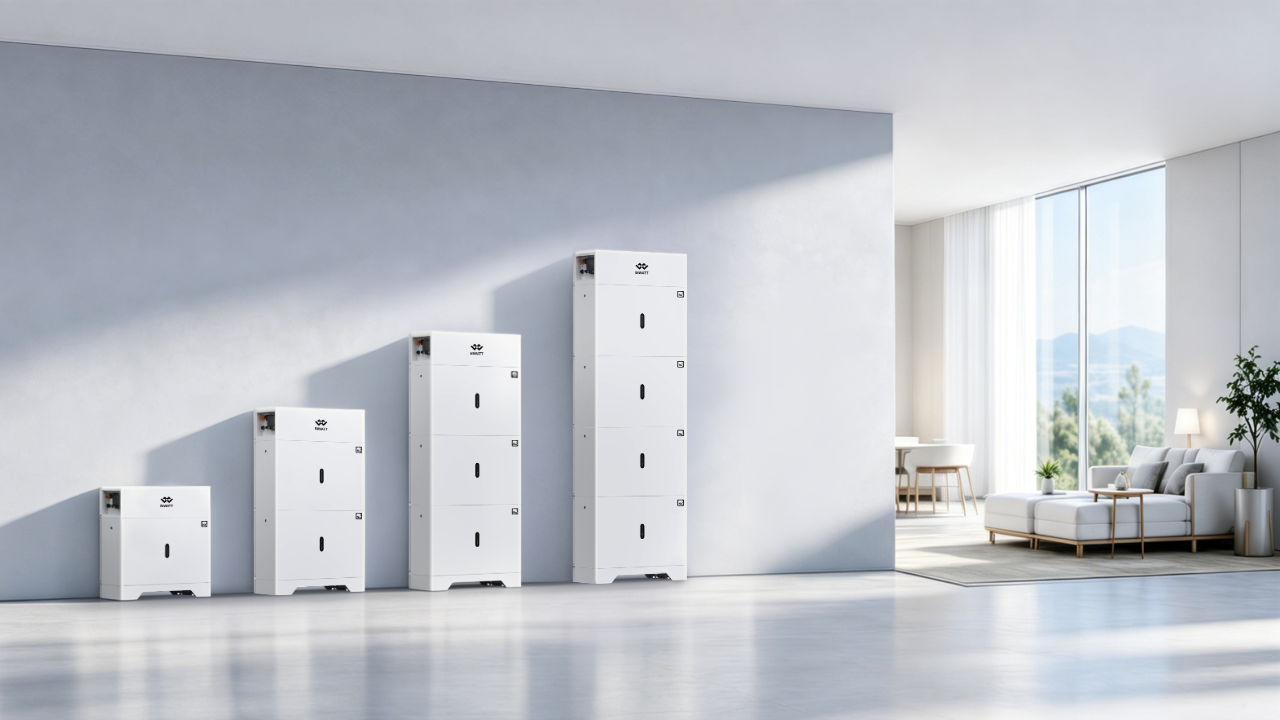

The PowerNest R5 Series comes in two configurations. The R5i is an all-in-one unit integrating battery modules with a single-phase hybrid inverter, targeting new installations and homeowners seeking a complete energy storage solution. The standalone R5 is a DC-coupled battery pack designed for compatibility with third-party hybrid inverter ecosystems, appealing to retrofit markets and installers with existing inverter preferences. Both variants share a distinctive wire-free, stackable architecture that eliminates inter-module cabling — a design choice that Biwatt says simplifies installation, shortens commissioning time, and reduces the risk of wiring-related field errors. Explore our LiFePO4 home battery solutions for comparison.
Each floor-standing module delivers 4.5kWh of usable capacity using 170Ah NFPP sodium-ion cells, with up to four modules per stack (18kWh) and four parallel stacks for a maximum configuration of 72kWh. The system operates at 58V nominal voltage, delivering 3kW continuous power and up to 55A maximum current per module.
Why Sodium-Ion for Residential Storage Matters Now
Sodium-ion battery technology has been widely discussed for grid-scale applications, but Biwatt's PowerNest R5 represents one of the first purpose-built sodium-ion products targeting the residential market. This matters for three reasons. First, sodium is the sixth most abundant element in Earth's crust — roughly 1,000 times more abundant than lithium — which structurally insulates sodium-ion cell costs from the supply chain volatility that periodically disrupts LFP battery pricing. Second, NFPP chemistry eliminates the need for cobalt, nickel, and other critical minerals that raise both cost and ethical sourcing concerns. Third, sodium-ion's superior low-temperature performance opens residential storage markets in cold-climate regions where LFP batteries require heated enclosures or suffer significant capacity degradation.
The timing is opportune. Global residential battery storage installations grew approximately 35% year-over-year in 2025, driven by rising electricity prices and increasing rooftop solar adoption. A cost-competitive sodium-ion option could accelerate this growth by offering homeowners an alternative that doesn't compete for the same lithium supply chains as electric vehicles.
Technical Deep Dive: NFPP Cathode Chemistry
The PowerNest R5's sodium iron pyrophosphate (NFPP, Na₂FeP₂O₇) cathode represents a specific branch of the polyanionic sodium-ion family that prioritizes structural stability and safety over maximum energy density. NFPP operates through a two-phase sodium intercalation mechanism: during discharge, sodium ions migrate from the anode through the electrolyte and insert into vacant sites within the NFPP crystal lattice, while iron ions toggle between Fe²⁺ and Fe³⁺ oxidation states to maintain charge balance.
The pyrophosphate framework (P₂O₇⁴⁻) provides exceptional structural rigidity compared to layered oxide cathodes, which tend to undergo phase transitions and volume changes during cycling. This rigidity translates directly to cycle life — Biwatt rates the PowerNest R5 at 8,000 cycles (25°C, 0.5C charge/discharge, 80% DoD), which at one full cycle per day represents over 21 years of service. For a residential storage system installed alongside rooftop solar and cycled daily, this effectively means the battery will last the functional lifetime of the solar installation.
The trade-off is energy density. NFPP's specific capacity of approximately 120 mAh/g is lower than LFP's 150-160 mAh/g, resulting in larger and heavier modules for the same energy content. The PowerNest R5's 65kg per 4.5kWh module (approximately 69 Wh/kg at the pack level) compares unfavorably to typical LFP residential batteries at 90-110 Wh/kg. However, for stationary residential applications — where weight and volume are far less constrained than in EVs — this density penalty is largely irrelevant, particularly when offset by the safety and longevity advantages.
Each module integrates a dedicated DC-DC optimizer alongside a custom battery management system that performs active module-level balancing. Rather than the passive balancing used in many residential batteries — which simply dissipates excess energy from higher-charged cells as heat — active balancing redistributes charge between modules, improving usable energy extraction and maintaining consistent power delivery across varying states of charge. Biwatt states this architecture "improves voltage stability, increases usable energy, and maintains more consistent power delivery."
Real-World Applications: Wire-Free Installation and Extreme Climate Performance
The wire-free stackable architecture deserves particular attention for its practical implications. Traditional modular battery systems require installers to connect DC power cables and communication wiring between each module — a process that is time-consuming, requires skilled electrical labor, and introduces potential points of failure through loose connections or incorrect wiring. The PowerNest R5's inter-module connection mechanism eliminates field wiring entirely, with modules physically stacking and connecting through integrated contacts. This reduces installation time and expands the pool of qualified installers.
The operating temperature range — -30°C to 55°C for discharge and -20°C to 55°C for charging — opens markets that LFP residential batteries struggle to serve. In Nordic countries, Canadian provinces, and high-altitude regions, LFP batteries typically require insulated and heated enclosures that add cost and complexity. A sodium-ion battery that can charge at -20°C without auxiliary heating represents a genuine competitive advantage for cold-climate applications. The IP65 rating further supports outdoor installation in challenging environments, protecting against dust ingress and low-pressure water jets. Visit our store to compare residential storage options.
Industry Impact: Sodium-Ion Moves from Industrial to Residential
Biwatt's launch of a residential sodium-ion product signals a broader technology transition. Sodium-ion batteries have predominantly been positioned for grid-scale and commercial applications where cost-per-cycle is the dominant metric and energy density is secondary. The PowerNest R5 demonstrates that sodium-ion can compete in the residential segment on a combination of safety, cycle life, and installation simplicity — even if it cannot match LFP on energy density.
The company's pursuit of UL1973 and UL9540A certification (in addition to existing CE and RCM compliance) is particularly significant for North American market access. UL9540A — the test method for evaluating thermal runaway fire propagation in battery energy storage systems — is effectively a prerequisite for permitting and insurance in the US residential storage market. Achieving this certification would place the PowerNest R5 among a select group of non-lithium chemistries approved for residential installation in North America.
Future Outlook: A Diversified Home Battery Market
The residential battery storage market is evolving from a near-monoculture of LFP chemistry toward a diversified technology landscape. LFP will likely remain dominant for applications where energy density and cost-per-kWh are paramount. But sodium-ion's unique combination of cold-weather performance, inherent thermal stability, and raw material abundance creates clear niches where it can outperform LFP — cold climates, safety-sensitive installations, and markets with volatile lithium supply chains.
Biwatt's PowerNest R5 is not the final word in residential sodium-ion storage, but it is an important proof point that the technology has arrived. As production scales and manufacturing costs follow the learning curve trajectory that LFP has already demonstrated, sodium-ion residential batteries could capture a meaningful share of the rapidly growing global home storage market. For homeowners evaluating storage options, the PowerNest R5 represents a compelling alternative that prioritizes longevity, safety, and installation simplicity over maximizing energy density — and that may be exactly the value proposition many residential customers are looking for.
