Behind-the-Meter Battery Storage Explained: Neoen's 963MWh Solar Co-Location Model Redefines Australian Renewables

When Neoen Australia began construction on a 215 MW / 963 MWh battery storage system at its Culcairn Solar Farm in New South Wales in late June 2026, it wasn't just adding storage to solar. The French independent power producer was implementing its first-ever behind-the-meter (BTM) configuration at utility scale—a technical and commercial architecture that fundamentally changes how solar generation interacts with electricity markets.

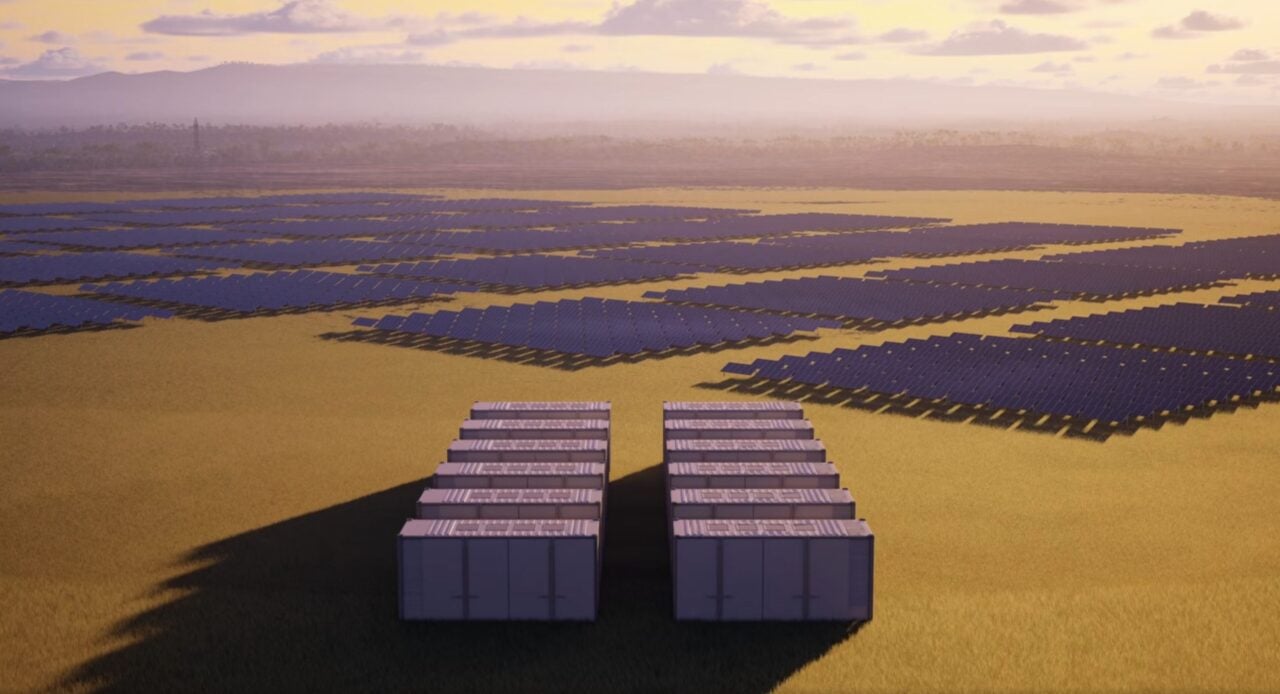

The Culcairn BESS, to be built by NHOA Energy (formerly Engie EPS) in partnership with Equans/Bouygues, will share a single 330 kV grid connection point with the adjacent 440 MWp solar farm—approximately 760,000 photovoltaic modules that entered commercial operation in May 2026. This is a far cry from the originally approved 100 MW / 200 MWh configuration: three successive capacity expansions to nearly five times the original scope testify to both improving battery economics and the strengthening logic of solar-storage co-location.

Overview: The Culcairn Project at Scale

The key technical parameters reveal the project's ambition:

• Solar Capacity: 440 MWp DC (approximately 350 MWac after inverter conversion)
• BESS Capacity: 215 MW / 963 MWh (4.5-hour duration at rated power)
• Grid Connection: Single 330 kV transmission line, shared between solar and BESS
• EPC Contractor: NHOA Energy + Equans/Bouygues joint venture
• Target Commissioning: 2028
• Revenue Support: New South Wales LTESA (Long-Term Energy Service Agreement) mechanism

The project is located in the Riverina region of southwestern New South Wales, an area characterized by excellent solar irradiation (approximately 2,100 kWh/m²/year) and strong existing transmission infrastructure connecting to the Sydney and Melbourne load centers.

Why This Development Matters

The Culcairn BTM configuration represents a structural innovation in how utility-scale solar plants interact with the grid. In a conventional setup, a solar farm and a co-located BESS each have separate grid connection agreements, metering, and market participation—they are legally and electrically distinct entities that happen to share a fence line.

In the BTM model, the BESS sits on the generator side of the grid connection point, sharing the same meter and connection infrastructure. Electricity flows from solar panels to BESS to grid through a single point of common coupling. This creates several distinct advantages:

1. Connection Cost Savings: Sharing a single 330 kV connection eliminates the need for a separate BESS substation, transformer, and transmission line tap—costs that can represent 15-25% of total project CAPEX for standalone BESS in Australia.

2. Curtailment Capture: During periods of negative or near-zero wholesale prices (increasingly common in Australia's midday solar oversupply periods), solar generation that would otherwise be curtailed is diverted to the BESS instead. At Culcairn's scale, this could recover 50-100 GWh annually that would otherwise be lost.

3. Firming and Shaping: The BTM configuration allows the combined facility to present a firmed generation profile to the market—discharging stored solar energy during evening peaks when prices are highest. This is the core value proposition: transforming intermittent solar into dispatchable, shapeable generation.

4. LTESA Revenue Optimization: New South Wales' LTESA mechanism provides a revenue floor and ceiling for qualifying projects. By time-shifting generation from low-price to high-price periods, the BESS maximizes the facility's ability to capture LTESA upside while minimizing downside exposure.

Technical Deep Dive: Behind-the-Meter Architecture

The engineering of a utility-scale BTM configuration involves several design considerations that differ fundamentally from standalone BESS:

Shared Point of Common Coupling (PCC): The 330 kV substation at Culcairn serves as the PCC for both the solar plant and the BESS. Power flow management at the PCC requires a site-level energy management controller (S-EMC) that coordinates the solar inverters and BESS power conversion systems as a single virtual power plant. The S-EMC enforces the maximum export capacity agreed with TransGrid (the NSW transmission operator), typically the lesser of the solar nameplate capacity or the connection agreement limit.

DC-Coupled vs. AC-Coupled Architecture Selection: Culcairn uses an AC-coupled configuration, where the solar PV inverters and BESS PCS connect to a shared medium-voltage AC collection system (likely 33 kV) before stepping up to 330 kV. While DC-coupled architectures (where the BESS connects on the DC side of the solar inverters) offer slightly higher round-trip efficiency by avoiding an extra DC-AC conversion, AC-coupling provides greater operational flexibility: the BESS can charge from the grid during off-peak periods even when solar generation is zero, enabling pure arbitrage operations during cloudy days or overnight.

Protection Coordination Complexity: In a BTM configuration, protection relays must differentiate between internal faults (within the solar array or BESS) and external faults (on the transmission network) while accounting for bidirectional power flows. The protection scheme typically employs differential protection on the 330 kV transformer, directional overcurrent relays on all medium-voltage feeders, and a centralized protection coordination controller that dynamically adjusts trip settings based on operating mode (charging, discharging, or idle).

Harmonic Interactions: With potentially dozens of solar inverters and BESS PCS units operating simultaneously at a single PCC, harmonic interactions between power electronic devices become a significant design consideration. IEEE 519 compliance requires total harmonic distortion below 5% at the PCC, which may necessitate active harmonic filtering or passive tuned filters if inverter-level mitigation is insufficient.

Islanding and Anti-Islanding: During transmission network faults, the BTM facility must detect loss of grid and cease exporting within 2 seconds (per Australian Standard AS 4777.2). However, the presence of both generation (solar) and storage (BESS) behind the same PCC creates a more complex islanding detection scenario: the BESS can continue to energize the local AC network even after grid disconnection, potentially maintaining voltage and frequency within normal operating ranges and defeating passive islanding detection methods. Active methods—typically frequency shift or Sandia frequency shift algorithms—must be implemented at the S-EMC level.

Real-World Applications: The Economics of Solar Firming

The Culcairn model addresses a growing problem in the Australian National Electricity Market (NEM): solar value deflation. As utility-scale solar penetration has exceeded 25% of daytime generation in NSW, the volume-weighted average price captured by solar generators has declined approximately 40% from 2020 to 2026. During the midday solar peak, prices routinely fall below A$0/MWh for extended periods.

A 215 MW / 963 MWh BESS can time-shift approximately 250-300 GWh of solar generation annually from the midday trough to the evening peak, where prices average A$120-180/MWh. At a price spread of A$100/MWh, this represents A$25-30 million in additional annual revenue versus selling the same energy at midday prices.

Comparative context: Standalone solar farms in NSW achieved capacity factors of 27-29% in 2025. A solar-BTM-BESS configuration can achieve effective firm capacity factors exceeding 45% during peak demand hours (4-9 PM), dramatically improving the project's contribution to system reliability—and its value to offtakers.

Industry Impact and Market Implications

The Culcairn BTM model has implications that extend well beyond this single project:

1. Connection Queue Optimization: Australia's NEM connection queue has approximately 40 GW of solar and wind projects awaiting grid connection studies, with typical timelines of 24-36 months. BTM configurations that share a single connection point effectively double the capacity that can be connected through a given queue position, accelerating the overall deployment of both solar and storage.

2. Project Finance Evolution: The combined solar-BTM-BESS facility presents a blended revenue profile that is more attractive to lenders than standalone solar. Lenders can model a floor revenue from solar generation plus upside from storage arbitrage, potentially achieving higher debt-to-equity ratios and lower financing costs.

3. Capacity Market Participation: As the NEM's capacity mechanism evolves, BTM configurations that can demonstrate firm capacity during peak demand periods will be able to bid into capacity auctions at higher volumes than standalone solar, creating an additional revenue stream.

Future Outlook

The Culcairn project's fivefold capacity expansion from initial approval to construction suggests that the BTM solar-storage model is still in its early optimization phase. Several trends will shape its evolution:

Duration Extension: The current 4.5-hour BESS duration could economically extend to 6-8 hours as battery costs continue their learning-curve decline. Longer duration enables multi-day energy shifting, capturing weekend-to-weekday price differentials that are increasingly significant in markets with high renewable penetration.

Multi-Technology Integration: Future BTM configurations may incorporate multiple storage technologies optimized for different durations—lithium-ion for intraday shifting plus flow batteries or compressed air for multi-day storage—all behind a single connection point.

Regulatory Standardization: Australia's energy market institutions (AEMO, AER, AEMC) are developing standardized connection and metering frameworks specifically for BTM configurations. Clear regulatory pathways will reduce development timelines and costs, potentially making BTM the default architecture for new solar projects by 2030.

The Neoen Culcairn project is a template for the next generation of renewable energy infrastructure—where generation and storage are no longer separate assets but integrated systems optimized as a single entity. As AGAIC POWER develops its energy storage solutions, the BTM architecture provides a powerful model for maximizing the value of renewable generation. Explore our integrated solar and storage solutions designed for the future grid.
