Ingeteam 4.54 MVA Grid-Forming Central Inverter Analysis: Utility-Scale BESS PCS Modular Power Electronics, Synthetic Inertia, 1500Vdc Platform and High-Altitude Deployment Future Explained

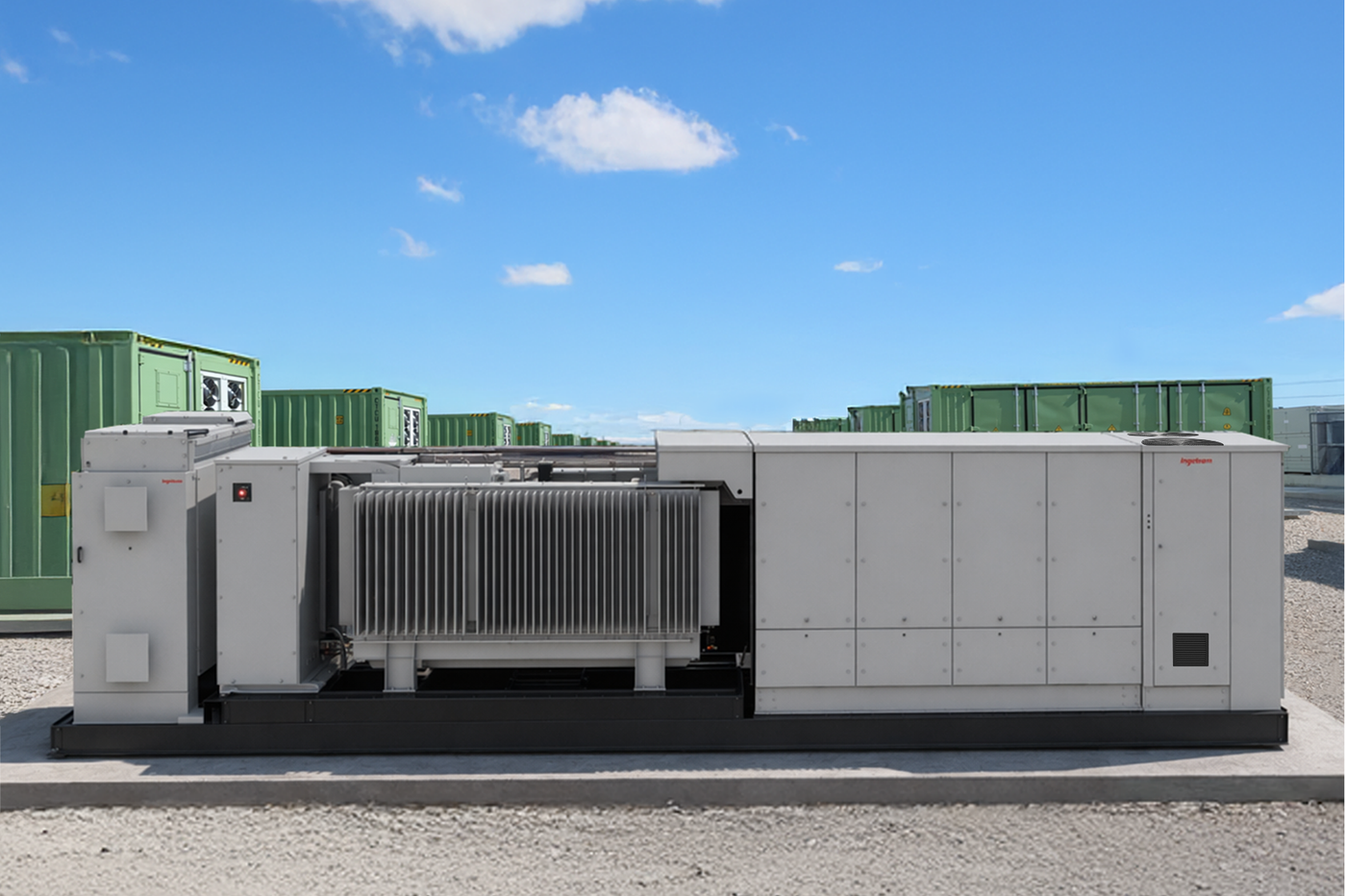

On July 17, 2026, Spanish power electronics manufacturer Ingeteam — a privately held company headquartered in Zamudio, Basque Country, with approximately 4,000 employees and a power conversion equipment installed base exceeding 50 GW globally across solar PV, wind, energy storage, and industrial drive applications — announced the Ingecon Sun Storage M series, a new modular central inverter platform purpose-designed for utility-scale battery energy storage system (BESS) applications. The flagship product delivers up to 4.54 MVA of apparent power per unit at a nominal DC input voltage of 1,500 Vdc — the emerging industry standard for grid-scale BESS, replacing the legacy 1,000-1,100 Vdc platform — and supports both grid-following (current-source) and grid-forming (voltage-source) operational modes, enabling the inverter to not only synchronize to and inject power into an existing grid but also to establish and regulate grid voltage and frequency independently — a capability that is rapidly transitioning from a premium differentiating feature to a mandatory grid code requirement in markets with high renewable energy penetration (e.g., UK National Grid ESO's GC0137 standard, Hawaii Electric's grid-forming inverter procurement, and ENTSO-E's ongoing grid-forming capability specification development). The M series encompasses two product lines: the standalone 3Power M series (configurable from 1 to 8 power modules for a total capacity of up to 9.08 MVA per unit, intended for integration by the customer into a custom BESS enclosure or building) and the skid-mounted FSK M series (a fully integrated medium-voltage solution combining the inverter, a step-up transformer, and medium-voltage switchgear on a single transportable skid, rated up to 4.54 MVA, intended for utility-scale BESS projects requiring rapid field deployment with minimal on-site civil works). The platform's engineering specifications — maximum efficiency of 98.9% (European efficiency of 98.5%), IP65 enclosure protection (dust-tight and protected against low-pressure water jets from any direction), C5M corrosion resistance rating (suitable for very high-corrosivity industrial and coastal marine environments), operating temperature range of -20°C to +60°C without derating, and maximum operating altitude of 4,500 meters above sea level — position the Ingecon Sun Storage M series at the high-performance, high-durability segment of the BESS inverter market, targeting utility-scale projects in environmentally demanding locations where competing products may require supplementary enclosure, HVAC, or derating. This article provides a comprehensive engineering and market analysis of the Ingecon Sun Storage M series, including the control theory and power electronics topology of grid-forming inverters, a comparative analysis of central versus string inverter architectures for utility-scale BESS, the synthetic inertia and frequency regulation capabilities that grid-forming inverters provide, and the implications for the competitive structure of the global BESS power conversion system market.
Overview of the Ingecon Sun Storage M Series: Power Electronics Architecture and Product Engineering
The Ingecon Sun Storage M series' power electronics architecture is based on a modular, scalable design philosophy that has become the dominant approach for utility-scale BESS inverters: individual power modules — each containing an insulated-gate bipolar transistor (IGBT)-based three-phase inverter bridge, DC-link capacitors, gate driver circuits, output filters (typically LCL topology — an inductor-capacitor-inductor filter that attenuates switching-frequency harmonics to meet grid code harmonic distortion limits, typically IEEE 519 total harmonic distortion < 5% at the point of common coupling), and dedicated digital signal processor (DSP) control boards — are connected in parallel on a common AC bus and a common DC bus to achieve the target total power rating. The modular architecture provides three key benefits for BESS applications: scalability (adding or removing power modules adjusts the total power rating without redesigning the entire inverter, enabling a single product platform to serve projects ranging from 1.1 MVA — a single power module — to 9.08 MVA — eight modules — with minimal engineering non-recurring cost per project), fault tolerance (if a single power module fails, the remaining modules continue operating at reduced total capacity, avoiding a complete system outage while the failed module is replaced — an important availability consideration for BESS projects with stringent capacity obligations under offtake contracts or grid connection agreements), and maintenance simplicity (individual power modules can be hot-swapped — removed and replaced while the remaining modules continue operating — reducing mean time to repair from days to hours).
The 1,500 Vdc DC input voltage — up from the legacy 1,000-1,100 Vdc standard — is a critical design choice that reflects the broader industry transition driven by the economic advantages of higher DC voltage in BESS systems. For a given power rating, increasing the DC voltage from 1,000V to 1,500V reduces the DC current by 33% (since power = voltage × current), which in turn reduces the cross-sectional area of DC cabling (current-carrying capacity is proportional to conductor cross-sectional area), the I²R losses in DC conductors and busbars (losses are proportional to the square of current), and the number of parallel DC strings required (each string carries less current at higher voltage, so fewer parallel strings are needed). At the system level, these benefits translate to approximately 10-15% reduction in DC-side balance-of-system costs (cabling, busbars, fuses, disconnect switches) and 1-2% improvement in DC-side efficiency (due to reduced I²R losses) — significant economics for utility-scale BESS projects with narrow profit margins. The 1,500V platform also enables longer DC cable runs (voltage drop is proportional to current, which is lower at 1,500V for the same power), providing greater flexibility in physical layout — for example, positioning the inverter skid further from the battery containers to optimize site logistics or fire safety separation distances without incurring excessive DC cable losses.
The product's environmental specifications — IP65 enclosure protection, C5M corrosion resistance, -20°C to +60°C operating temperature range without derating, and 4,500-meter maximum altitude — represent a deliberate targeting of the most demanding utility-scale BESS deployment environments, where competing inverters may require supplementary enclosure (adding cost and installation complexity), forced-air cooling upgrades (adding parasitic load and maintenance requirements), or power derating (reducing revenue-generating capacity). The IP65 rating — indicating complete protection against dust ingress and protection against low-pressure water jets from any direction — enables outdoor installation without a separate equipment shelter, reducing civil works cost and footprint. The C5M corrosion resistance — the highest corrosion category in the ISO 12944 standard, suitable for industrial areas with high humidity and aggressive atmosphere, and coastal and offshore areas with high salinity — is achieved through a combination of corrosion-resistant materials (stainless steel enclosures, conformally coated printed circuit boards, sealed connectors) and protective coatings (multi-layer epoxy or polyurethane paint systems), and is particularly valuable for BESS projects in coastal locations (where salt spray accelerates corrosion of unprotected metal components), desert locations (where wind-blown sand and dust abrade surfaces and ingress into enclosures), and tropical locations (where high humidity combines with temperature cycling to cause condensation and accelerated corrosion). The 4,500-meter altitude rating — achieved through larger creepage and clearance distances on printed circuit boards and power semiconductor modules to prevent dielectric breakdown in the lower air density at high altitude (Paschen's law: the breakdown voltage of air decreases with decreasing pressure) — targets BESS deployments in high-altitude locations such as the Altiplano region of Chile, Bolivia, and Peru (where world-class solar resources at 3,000-4,500 meters elevation are driving significant solar-plus-storage project development), the Tibetan Plateau in China, and the Rocky Mountain region of the United States.
Why This Development Matters: Grid-Forming Inverters and the System Strength Challenge in High-Renewable Grids
The Ingecon Sun Storage M series' grid-forming capability — the ability to operate as a voltage source that establishes and regulates grid voltage and frequency, rather than as a current source that synchronizes to an existing voltage waveform — matters because it directly addresses one of the most significant technical challenges created by the global energy transition: the declining system strength and inertia in electricity grids as synchronous generators (coal, gas, nuclear, and hydro plants with heavy rotating turbine-generator sets) are retired and replaced by inverter-based resources (solar PV, wind, and BESS). Synchronous generators provide three essential grid services passively — services that are inherent to their physics and do not require active control: inertia (the kinetic energy stored in the rotating mass of the turbine-generator set, which resists changes in grid frequency — when a large generator trips offline and frequency begins to drop, synchronous machines release their stored kinetic energy to slow the rate of frequency decline, buying time for primary frequency response resources to activate), fault current contribution (when a short circuit occurs on the grid, synchronous machines inject 5-7 times their rated current into the fault — this large fault current is easily detected by protection relays, enabling rapid fault isolation), and voltage regulation (the synchronous machine's automatic voltage regulator adjusts the generator's field current to maintain terminal voltage at the setpoint, providing reactive power support to the grid).
When synchronous generators are retired and replaced by inverter-based resources, these passive grid services are lost unless the inverters are explicitly designed to provide them. Grid-following inverters — which constitute the vast majority of currently deployed solar PV and BESS inverters — operate as current sources: they measure the grid voltage at their terminals (using a phase-locked loop, or PLL, to track the voltage phase angle), and inject a current waveform that is synchronized to that measured voltage. A grid-following inverter cannot operate without an existing grid voltage to synchronize to — if the grid voltage collapses (during a blackout) or becomes too weak (at the end of a long, lightly loaded transmission line in a remote area), the grid-following inverter's PLL loses lock and the inverter trips offline. Equally critically, a grid-following inverter does not contribute inertia or fault current: during a frequency disturbance, it continues injecting its pre-disturbance current (or adjusts current according to its programmed frequency-watt droop characteristic, which takes 100-500 milliseconds to respond — a delay during which frequency may have already declined to the point of triggering under-frequency load shedding), and during a fault, it limits its output current to 1.1-1.5 times rated current (compared to 5-7 times for a synchronous machine) to protect its power semiconductors from overcurrent damage — making fault detection by conventional overcurrent protection relays unreliable.
Grid-forming inverters — such as the Ingecon Sun Storage M series in its grid-forming mode — operate fundamentally differently: they act as a voltage source, establishing their own internal voltage magnitude and frequency reference (typically using a virtual synchronous machine, or VSM, control algorithm that mathematically emulates the behavior of a synchronous generator, including the swing equation that couples rotor angle acceleration to the difference between mechanical input power and electrical output power). The grid-forming inverter does not require an existing grid voltage to operate — it can black-start (energize a de-energized grid section from a cold start, using energy stored in the DC-side battery to establish the AC voltage waveform), enabling BESS to serve as the anchor resource for microgrids and islanded power systems. During frequency disturbances, the grid-forming inverter's VSM control inherently injects or absorbs active power to resist frequency changes — the "virtual inertia" response occurs within 5-20 milliseconds (the inverter's control loop bandwidth), compared to 100-500 milliseconds for a grid-following inverter's frequency-watt droop response, and comparable to the 10-50 millisecond inherent inertial response of synchronous machines. During faults, the grid-forming inverter can be programmed to inject 2-3 times rated current for short durations (limited by the power semiconductors' transient thermal capability rather than steady-state thermal limits), providing sufficient fault current for conventional protection relays to detect and isolate the fault. These capabilities are no longer merely academic: the UK's National Grid ESO has mandated grid-forming capability for new BESS connections in specific regions (including Scotland and northern England, where high wind penetration and limited synchronous generation create system strength challenges), Hawaii has procured grid-forming BESS for the Kauai and Oahu island grids (where the retirement of oil-fired steam generators has eliminated the synchronous generation that previously provided system strength), and ENTSO-E is developing a European grid-forming capability specification expected to be incorporated into national grid codes by 2028-2030. AGAIC POWER's utility-scale BESS platforms are engineered for grid-forming integration — our systems support the advanced inverter controls, high-speed communication interfaces, and battery management system coordination required to deliver virtual inertia, black-start capability, and fault current contribution in high-renewable-penetration grids across global markets.
Technical Deep Dive: Grid-Forming Inverter Control Theory, Power Electronics Topology, and Synthetic Inertia Engineering
The control theory underpinning grid-forming inverter operation — and the power electronics topology that enables it — represents a significant engineering advancement over grid-following inverter technology. The dominant grid-forming control approach — adopted by Ingeteam, SMA, and most grid-forming inverter manufacturers — is virtual synchronous machine (VSM) control, which implements a mathematical model of a synchronous generator's electromechanical dynamics in the inverter's DSP firmware. The VSM control algorithm — executing every 50-100 microseconds (at a 10-20 kHz control loop frequency) — solves the swing equation: J × dω/dt = Pm - Pe - D × (ω - ω₀), where J is the virtual inertia constant (programmable, typically set to provide an inertia constant H of 2-5 seconds — comparable to the 2-6 second H of thermal synchronous generators), ω is the virtual rotor angular frequency, Pm is the virtual mechanical input power (derived from the battery state of charge and the energy management system's power setpoint), Pe is the measured electrical output power, D is the virtual damping coefficient (programmable, determining the steady-state frequency-power droop characteristic), and ω₀ is the nominal grid angular frequency (2π × 50 Hz or 2π × 60 Hz). The VSM's output — the virtual rotor angle and voltage magnitude reference — drives an inner voltage control loop (a proportional-integral or proportional-resonant controller that regulates the inverter's output voltage to match the reference), which in turn drives an inner current control loop (a proportional-integral controller that regulates the inverter's output current, providing overcurrent protection and ensuring the power semiconductors operate within their safe operating area).
The power electronics topology that implements grid-forming control — applicable to the Ingecon Sun Storage M series and similar products — begins with the DC-link capacitors (typically film capacitors with capacitance of 1-5 mF, providing energy storage to buffer the instantaneous power difference between the DC-side battery and the AC-side grid during each PWM switching cycle). The DC-link feeds the three-phase inverter bridge — typically a two-level voltage-source inverter (VSI) topology for power ratings up to approximately 2-3 MVA, transitioning to a three-level neutral-point-clamped (NPC) or T-type topology for ratings above 3 MVA to reduce semiconductor voltage stress (each switch in a three-level topology blocks half the DC-link voltage) and improve output voltage waveform quality (reducing the switching-frequency harmonic content and the size of the output filter). The power semiconductors — historically silicon IGBTs (insulated-gate bipolar transistors) for this power range, but increasingly transitioning to silicon carbide (SiC) MOSFETs in next-generation products — switch at 2-10 kHz (the pulse-width modulation, or PWM, carrier frequency), generating a staircase approximation of a sinusoidal output voltage that is smoothed by the output filter (typically an LCL topology — series inductor, shunt capacitor, series inductor — that provides 40-60 dB of attenuation at the switching frequency while maintaining low impedance at the fundamental frequency to avoid voltage drop under load).
The engineering distinction between grid-forming capability as a firmware feature versus a hardware design requirement is critical for understanding the competitive positioning of the Ingecon Sun Storage M series. Theoretically, any inverter with a sufficiently fast control loop, adequate DC-link energy storage, and the ability to operate in all four quadrants of the P-Q plane (sourcing and sinking both active and reactive power) can be programmed with grid-forming control firmware. However, practical implementation requires hardware design features that are not universally present in grid-following inverters: (1) the DC-link capacitors must be sized to provide the instantaneous power required for the virtual inertia response — during a frequency drop, the VSM control increases the inverter's active power output faster than the battery's DC-DC converter can respond (the DC-DC converter's response time is typically 10-50 milliseconds, limited by its control loop bandwidth and inductor current slew rate), requiring the DC-link capacitors to supply the power for the first 10-50 milliseconds without voltage sag that would cause the inverter's output voltage to collapse; (2) the power semiconductors must be rated for the higher transient currents associated with fault current contribution — grid-following inverters typically use semiconductors rated for 1.1-1.5 times the nominal continuous current, while grid-forming inverters require 2-3 times the nominal continuous current rating to provide short-duration fault current injection without exceeding the semiconductors' safe operating area; and (3) the output filter must be designed to handle the harmonic content of grid-forming operation — unlike grid-following inverters, which synchronize to grid voltage and inject sinusoidal current with minimal voltage distortion, grid-forming inverters must maintain a clean sinusoidal output voltage even when connected to a distorted grid (where non-linear loads generate harmonic currents that flow through the inverter's output impedance, creating harmonic voltage distortion), requiring a lower output impedance at harmonic frequencies — achieved through higher filter capacitance and/or active harmonic damping in the control algorithm.
Real-World Applications: Island Grids, Remote Mining, and High-Renewable-Penetration Markets
The primary near-term market for grid-forming BESS inverters — and the most immediate application of the Ingecon Sun Storage M series' grid-forming capability — is island and remote grids where the retirement of diesel or heavy fuel oil (HFO) generation is creating system strength deficits that can only be addressed by grid-forming inverter-based resources. Hawaii — where each island operates as an electrically independent grid (no submarine transmission cables connect the islands) and where oil-fired steam generators are being retired under the state's 100% renewable portfolio standard — has been the global pioneer, with Hawaiian Electric's procurement of grid-forming BESS on Kauai, Oahu, and Maui establishing performance benchmarks and grid code requirements that are now being adopted by other island grids including Puerto Rico (where the Puerto Rico Electric Power Authority's integrated resource plan calls for 1.5 GW of energy storage by 2028, much of it grid-forming), the Canary Islands (Spain), Crete (Greece), and various Caribbean and Pacific island nations. The Ingecon Sun Storage M series — with its C5M corrosion resistance (critical for tropical island environments with high humidity and salt spray), high-temperature operation without derating (critical for tropical environments where daytime ambient temperatures exceed 40°C), and grid-forming capability — is specifically engineered for these island grid applications.
A second application — leveraging the platform's high-altitude rating — is remote mining operations in the Andes mountains of Chile, Peru, and Argentina, where copper, lithium, and gold mining operations at elevations of 3,000-4,500 meters are transitioning from diesel generation to solar-plus-storage hybrid power systems. The mining industry's decarbonization imperative — driven by corporate net-zero commitments from major miners (BHP, Rio Tinto, Glencore, Anglo American), carbon border adjustment mechanisms in export markets (the EU's CBAM, which imposes carbon costs on imported goods based on their embedded emissions), and the economic advantage of solar PV in high-altitude desert locations (where thin atmosphere and low humidity result in solar irradiance 15-25% higher than at sea level) — is creating a substantial market for high-altitude-rated, grid-forming BESS inverters that can provide the power quality and reliability required by mining loads (which include large motors for crushers, grinding mills, and conveyor belts that impose significant reactive power and harmonic current demands).
A third application is grid-forming BESS deployed at "weak grid" locations in large interconnected systems — for example, at the end of long, lightly loaded transmission lines in remote areas of the Australian NEM, ERCOT (West Texas), and the Chilean Sistema Eléctrico Nacional (northern Chile), where the short-circuit ratio (a measure of grid strength — the ratio of the grid's short-circuit capacity at the connection point to the inverter-based resource's rated power) falls below 3-5, creating control instability risks for grid-following inverters. AEMO's 2026 ISP identifies dozens of such weak-grid locations in the NEM where new renewable energy and storage connections require grid-forming capability to maintain system strength, and similar analyses by ERCOT, CAISO, and European TSOs are driving grid-forming procurement requirements in these markets. Explore AGAIC POWER's grid-forming-compatible BESS solutions — our utility-scale platforms integrate with leading grid-forming inverters including the Ingecon Sun Storage M series, providing the battery DC-side infrastructure, energy management system, and site-level controls required for virtual inertia, black-start, and fault current contribution in demanding grid environments worldwide.
Industry Impact: The Competitive Structure of the Global BESS PCS Market and the Central vs. String Inverter Architecture Debate
The Ingecon Sun Storage M series' entry into the utility-scale BESS inverter market has implications for the competitive structure of the global power conversion system (PCS) market, which — unlike the BESS cell market (dominated by Chinese manufacturers CATL, BYD, EVE Energy, and Hithium) — features a diverse supplier landscape including European manufacturers (SMA, Ingeteam, ABB), Chinese manufacturers (Sungrow, Sineng Electric, Kehua Tech, NR Electric), North American manufacturers (Tesla, EPC Power), and South Korean manufacturers (Hyosung Heavy Industries). The market is currently in a state of architectural competition between two inverter topologies — central inverters (the category to which the Ingecon Sun Storage M series belongs) and string inverters (championed by SMA, Sungrow, and Huawei for BESS applications, analogous to the string inverter architecture that has become dominant in utility-scale solar PV) — with the outcome of this competition likely to shape the PCS market's technology trajectory through 2030.
Central inverters — characterized by a single large inverter (or a small number of large inverters, as in the modular M series) serving the entire BESS installation — offer advantages in capital cost (lower $/kW for the inverter itself, due to economies of scale in power semiconductor modules, DC-link capacitors, and enclosure), efficiency (marginally higher, typically 98.5-99.0% vs. 98.0-98.5% for string inverters, due to the use of larger, lower-loss IGBT modules and optimized magnetic components in the output filter), and medium-voltage integration simplicity (a single central inverter pairs naturally with a single step-up transformer connecting to the MV grid, whereas string inverters require either multiple smaller transformers or a complex AC collection network). Their primary disadvantage — and the motivation for the string inverter alternative — is single-point-of-failure risk: a central inverter failure takes the entire BESS installation offline until the inverter is repaired or replaced, whereas a string inverter architecture — with, for example, 50-100 small string inverters each serving a portion of the battery capacity — can tolerate individual string inverter failures with only partial capacity loss. The modular architecture of the Ingecon Sun Storage M series — with 8 individually replaceable power modules — partially mitigates the single-point-of-failure concern (failure of one power module reduces total capacity by 12.5%, and the module can be replaced with the remaining modules in service), but does not fully duplicate the distributed resilience of a string inverter architecture, where each inverter is an independent, self-contained unit.
String inverters for BESS — applying the architecture that has achieved dominant market share (>75%) in utility-scale solar PV — use many smaller inverters (typically 100-250 kW each for BESS, compared to 200-350 kW for solar PV), each connected to a subset of the battery modules, with the inverter outputs aggregated on a medium-voltage AC collection network. String inverters offer advantages in availability (failure of individual units reduces total capacity by only 1-2%, and units can be replaced without taking the system offline), granularity (the power output can be adjusted in small increments, improving part-load efficiency and enabling more precise bidding in wholesale electricity markets where bid quantities are 1 MW granular), and DC-side safety (lower DC voltage per string inverter — typically 1,000-1,500 Vdc, same as central — but with lower total DC energy per inverter, reducing arc-flash hazard). Their primary disadvantages are higher capital cost (typically 10-20% higher $/kW than central inverters at the 100+ MW scale), lower efficiency (due to the use of smaller power semiconductors with higher conduction losses, and multiple transformer stages with cumulative core losses), and communication complexity (the energy management system must coordinate 50-200 individual inverters rather than 1-10 central units, requiring a more sophisticated SCADA infrastructure).
Future Outlook: Grid-Forming Mandates, SiC Semiconductor Transition, and the BESS PCS Market Through 2030
Looking forward to 2030, the global BESS PCS market will be shaped by three technology and policy trends that directly affect the competitive positioning of the Ingecon Sun Storage M series and competing products. First, the progressive adoption of grid-forming capability mandates in grid codes worldwide: the UK's GC0137 standard (requiring grid-forming capability for new BESS connections in specified regions, with phased expansion to all new connections by 2028), Hawaii's grid-forming procurement (which has established performance specifications that are being adapted by other island grids), and ENTSO-E's ongoing grid-forming capability specification (expected to be incorporated into the EU Network Code on Requirements for Grid Connection of Generators by 2028-2030) will progressively transform grid-forming capability from a premium differentiating feature — available on high-end products such as the Ingecon Sun Storage M series, SMA's Sunny Central Storage UP, and Tesla's Megapack — to a minimum requirement for all new BESS connections in high-renewable-penetration markets. This regulatory transition will advantage inverter manufacturers that have invested early in grid-forming control algorithm development and hardware design — Ingeteam, SMA, and Tesla among the European and North American suppliers — while disadvantaging manufacturers that have focused primarily on cost-optimized grid-following products for the Chinese domestic market (where grid-forming requirements have not yet been adopted), creating a potential market segmentation between grid-forming-capable "premium" inverters and grid-following-only "commodity" inverters.
Second, the transition from silicon IGBT to silicon carbide (SiC) MOSFET power semiconductors — already underway in electric vehicle traction inverters and solar PV string inverters — will progressively extend to utility-scale BESS central inverters, driven by SiC's advantages in switching speed (enabling higher PWM carrier frequencies that reduce output filter size and weight by 30-50%), conduction losses (SiC MOSFETs have lower on-state resistance than IGBTs at the current densities typical of BESS inverter operation, improving efficiency by 0.5-1.0 percentage points), and thermal performance (SiC's higher maximum junction temperature — 200°C vs. 150°C for silicon IGBTs — enables higher power density and potentially eliminates the need for liquid cooling in some applications). The Ingecon Sun Storage M series — as a new product platform launched in 2026 — is likely designed with a migration path to SiC, either through a mid-life "SiC upgrade" option that replaces IGBT power modules with pin-compatible SiC modules (leveraging the modular architecture to enable field upgrades without replacing the entire inverter) or through a dedicated SiC-based variant ("Ingecon Sun Storage M-SiC") that targets the highest-efficiency, highest-power-density market segment. SMA has already launched a SiC-based variant of its Sunny Central Storage UP inverter, and Sungrow and Huawei are developing SiC-based BESS inverters for the Chinese and international markets, suggesting that SiC will become the dominant power semiconductor technology for utility-scale BESS inverters by 2028-2030.
Third, the convergence of BESS inverter and DC-DC converter functionality — the integration of the battery DC-DC converter (which manages the battery's state-of-charge-dependent voltage, typically 1,000-1,500 Vdc, and provides galvanic isolation between the battery and the grid) and the DC-AC inverter into a single power electronics unit — will simplify BESS system architecture, reduce balance-of-system cost (by eliminating separate DC-DC converter enclosures, cabling, and controls), and improve round-trip efficiency (by eliminating the losses of a separate DC-DC conversion stage, approximately 1-2 percentage points). The Ingecon Sun Storage M series — as a DC-AC inverter without integrated DC-DC conversion — currently requires an external DC-DC converter (typically integrated into the battery container by the battery supplier), but future product iterations may integrate DC-DC conversion directly into the inverter skid, creating a true "all-in-one" BESS PCS that accepts battery DC input directly without an intermediate DC-DC stage. This architectural convergence — combined with grid-forming capability and SiC semiconductor adoption — will define the technology frontier of the BESS PCS market through 2030, with products that successfully integrate all three features commanding premium pricing and market share in the expanding global utility-scale storage market.
